Figure 186. RETURN LINES

Figure 185. DELIVERY LINES - Continued

Figure 186. RETURN LINES - Continued

Repair Parts For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch Page Navigation
420

TM 5-3805-294-24P

0002

10

11

3

2

1

4

5

8

22

9

6

10

21

7

20

11

19

23

18

24

17

1

2

12

13

15

14

16

HYEX00446

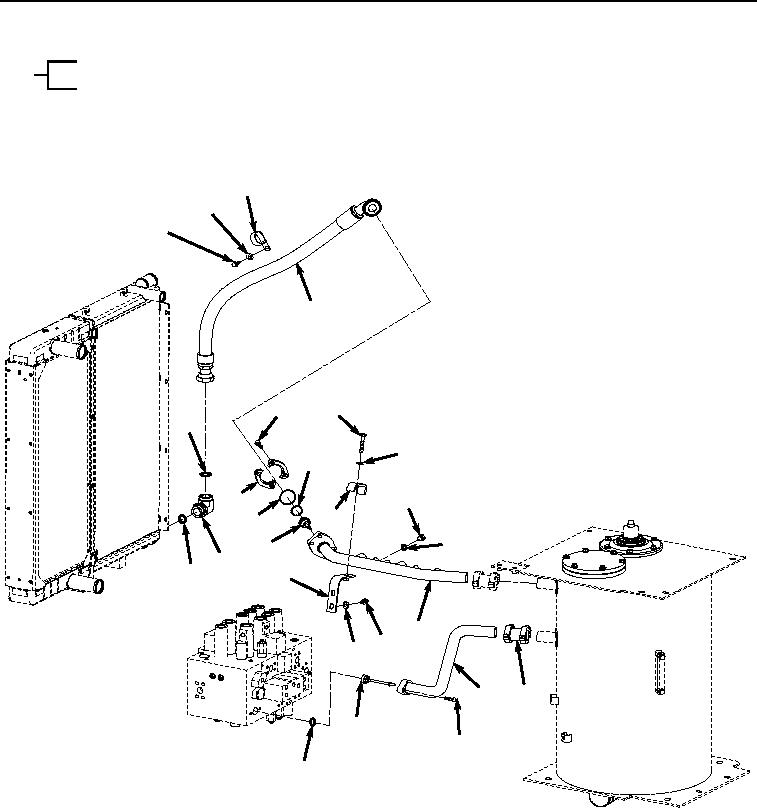

Figure 186. RETURN LINES

0002-452
