TM 5-3805-294-23-1
0002
LOCATION AND DESCRIPTION OF MAJOR COMPONENTS
5
6
8
7
4
3
2
1
9
HYEX01967

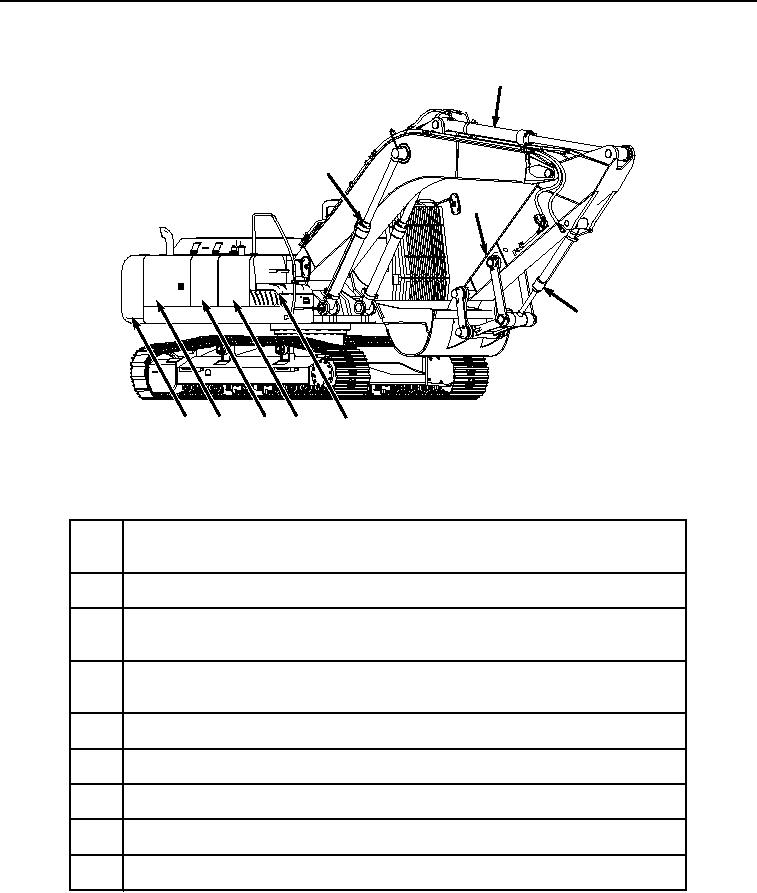

Figure 1. Right View of HYEX.
Table 1.
Right View of HYEX.
1
FUEL TANK. Contains JP-8, diesel, or other NATO-approved fuels for engine
operation.
2
HYDRAULIC RESERVOIR. Contains hydraulic oil for the hydraulic system.
3
HYDRAULIC PUMPS. Draws hydraulic fluid from the hydraulic reservoir and
provides hydraulic pressure and control pressure to the rest of the hydraulic system.
4
COUNTERWEIGHT. Adds stability to the machine during digging and lifting
operations.
5
ARM CYLINDER. Extends and retracts the arm.
6
BOOM CYLINDERS. Raises and lowers the boom.
7
ATTACHMENT CYLINDER. Curls the bucket while digging and allows for dumping.
8
HYDRAULIC THUMB CYLINDER. Extends and retracts the hydraulic thumb.
9
TOOL BOX. Used for storage of Basic Issue Items (BII).
