TM 5-3805-294-23-4
FIELD MAINTENANCE
AIR CONDITIONER/HEATER RECIRCULATING AIR FILTER REPLACEMENT
INITIAL SETUP:
Materials/Parts
Equipment Condition
Machine safely parked and shut down
Rags, Wiping (Volume 5, WP 0797, Table 1, Item
34)
(TM 5-3805-294-10). (Volume 5, WP 0794)
Personnel Required
Time to Complete
Construction Equipment Repairer 91L (1)
0.1 Hour(s)
References
TM 5-3805-294-24P: Fig. 121 (Volume 5,
WP 0794)
DA FORM 5988-E or DA FORM 2404 (Volume 5,
WP 0794)
REMOVAL
1.

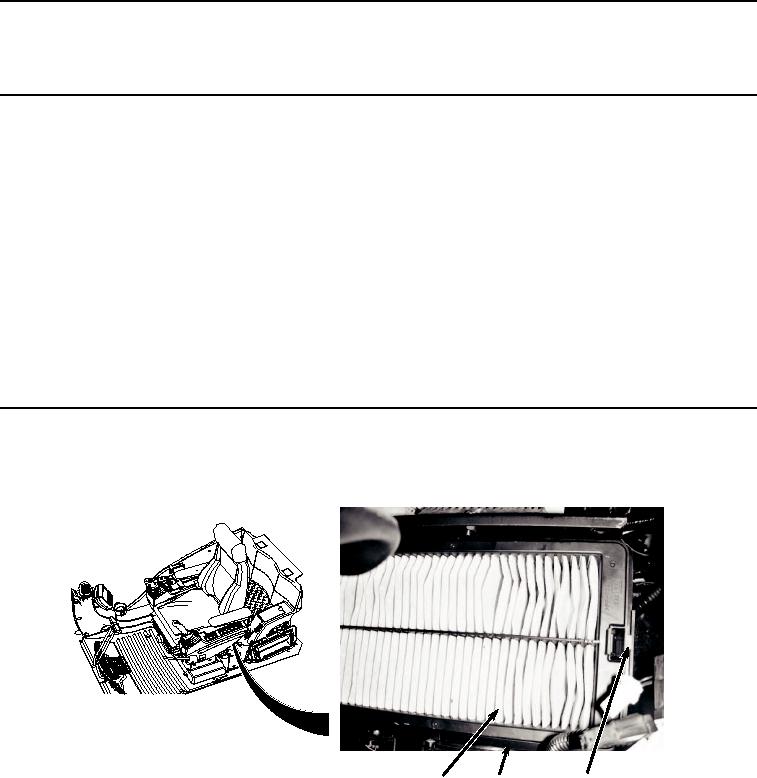

Move tab (Figure 1, Item 1) inward and remove filter (Figure 1, Item 2) from housing (Figure 1, Item 3).
3
2
1
HYEX00187
Figure 1. Filter Removal.
2.
Check tab (Figure 1, Item 1) on filter (Figure 1, Item 2) and replace if broken.
END OF TASK
INSTALLATION
1.
Wipe out inside of housing (Figure 2, Item 3) with a clean rag to remove any debris.
