TM 5-3805-294-23-4
0620
DISCONNECT VACUUM PUMP
WARNING
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry
and tools can catch on equipment, contact positive electrical circuits, and cause a direct
short, severe burns, or electrical shock. Failure to comply may result in injury or death to
personnel.
Hydraulic system operates at high pressures and temperatures. Always allow hydraulic
oil to cool and relieve pressure in hydraulic reservoir before working on hydraulic system.
Wear eye protection and gloves to prevent injury. Open lines and hoses slowly and wait
for any residual pressure to relieve before continuing to open lines and hoses. Failure to
comply may result in injury or death to personnel.
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
1.
Open needle valve (Figure 10, Item 8) fully counterclockwise.
8
22
HYEX03316

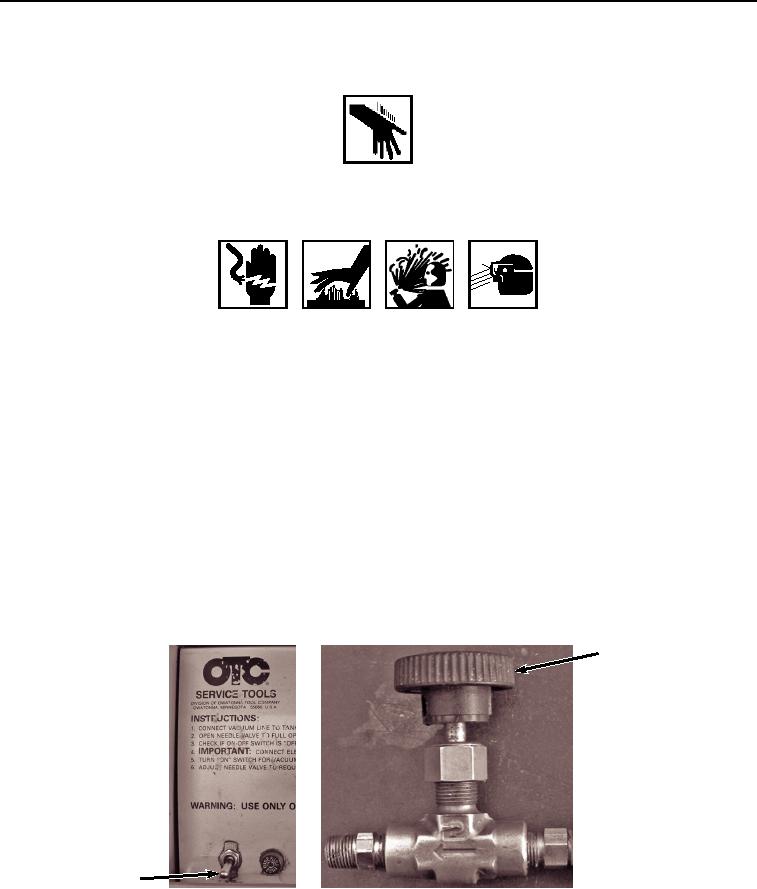

Figure 10.
Turning OFF Vacuum Pump.
2.
Place power switch (Figure 10, Item 22) down to the OFF position.
3.
Press and hold pressure relief button (Figure 11, Item 23) on hydraulic reservoir (Figure 11, Item 24).
