TM 5-3805-294-23-4
0620
CONNECT VACUUM PUMP - Continued
Hydraulic system operates at high pressures and temperatures. Always allow hydraulic
oil to cool and relieve pressure in hydraulic reservoir before working on hydraulic system.
Wear eye protection and gloves to prevent injury. Open lines and hoses slowly and wait
for any residual pressure to relieve before continuing to open lines and hoses. Failure to
comply may result in injury or death to personnel.
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Applying vacuum to hydraulic oil reservoir eliminates the need to drain reservoir prior to
servicing of hydraulic system components.
Be sure to run vacuum pump continuously while working to maintain negative pressure
in the hydraulic oil reservoir.
1.
Install fitting (Figure 1, Item 1) to fitting (Figure 1, Item 2).
3
1
2
HYEX03310

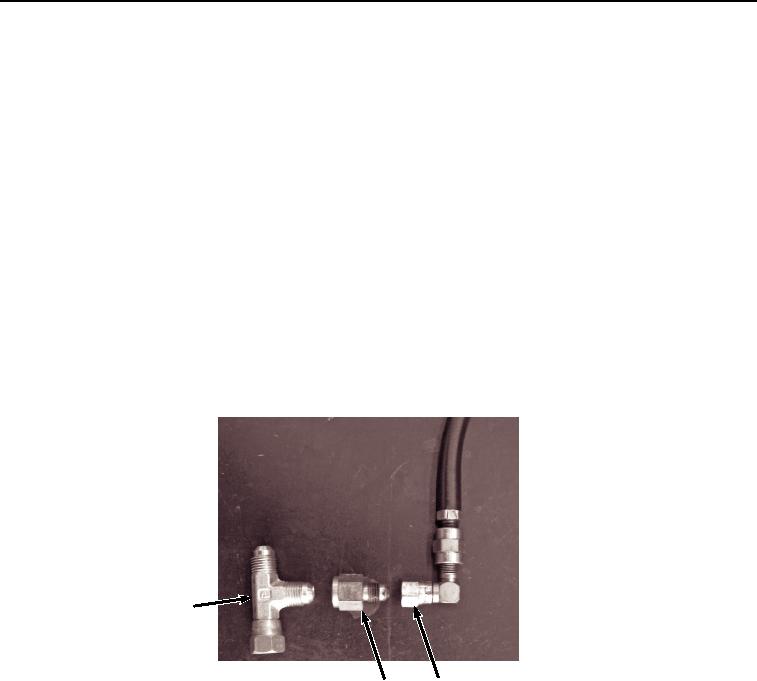

Figure 1.
Fitting Assembly.
2.
Install fitting (Figure 1, Item 3) to fitting (Figure 1, Item 1).
3.
Remove hose (Figure 2, Item 4) from fitting (Figure 2, Item 5).
