TM 5-3805-294-23-4
0516
REMOVAL - Continued
89
91
90
8
92
HYEX02495

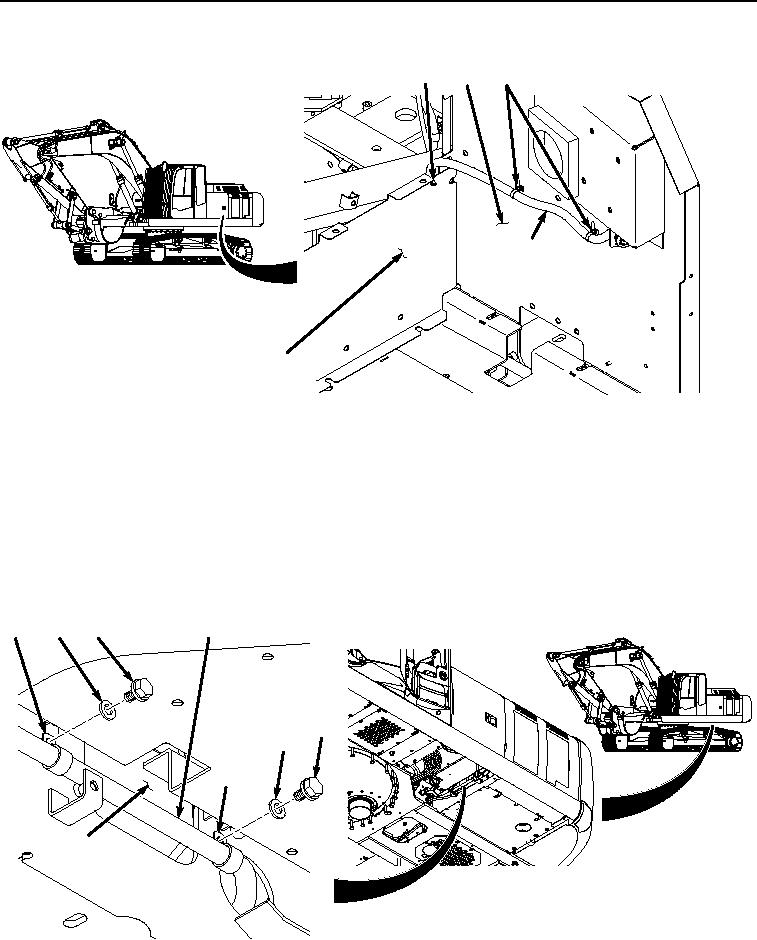

Figure 10. Remove Wiring Harness From Storage Compartment.
40.
Remove clip (Figure 10, Item 91) from wiring harness (Figure 10, Item 8) and cover (Figure 10, Item 92).
NOTE
Bolts (93), washers (94), and clamps (95) can be accessed and removed from access panel
below machine.
41.
Remove two bolts (Figure 11, Item 93), washers (Figure 11, Item 94), clamps (Figure 11, Item 95), and wiring
harness (Figure 11, Item 8) from frame (Figure 11, Item 14).
8
95
94
93
93
94
95
14
HYEX02490
Figure 11. Remove Wiring Harness From Under Storage Compartment.
