REMOVAL - Continued
8
124
123
130, 131, 132
117
14
116 126
125
127, 128, 129
HYEX02496

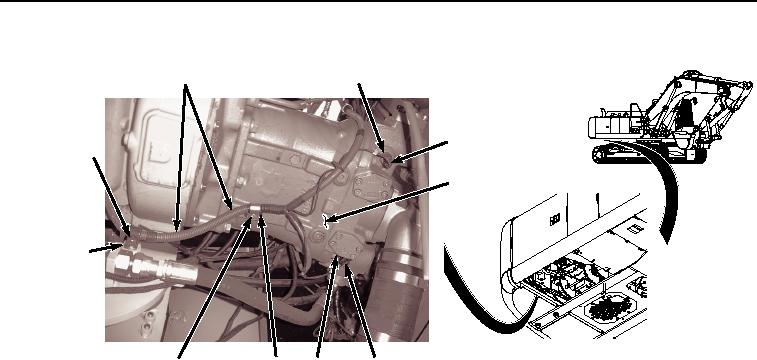

Figure 15. Remove Wiring Harness From Bottom Of Pump.
54.
Disconnect wiring harness connector B35 (Figure 15, Item 125) from pump 1 delivery pressure sensor (Figure
15, Item 126).
55.
Remove bolt (Figure 15, Item 127), washer (Figure 15, Item 128), clamp (Figure 15, Item 129), wiring harness
(Figure 15, Item 8), and bracket (Figure 15, Item 116) from pump (Figure 15, Item 117).
56.
Remove bolt (Figure 15, Item 130), washer (Figure 15, Item 131), clamp (Figure 15, Item 132), and wiring
harness (Figure 15, Item 8) from frame (Figure 15, Item 14).
57.
Remove bolt (Figure 16, Item 133), washer (Figure 16, Item 134), clamp (Figure 16, Item 135), and wiring
harness (Figure 16, Item 8) from frame (Figure 16, Item 14).
