TM 5-3805-294-23-4
0516
REMOVAL - Continued
152
151
150
149
148
145
144
143
142
147
141
146
HYEX02498

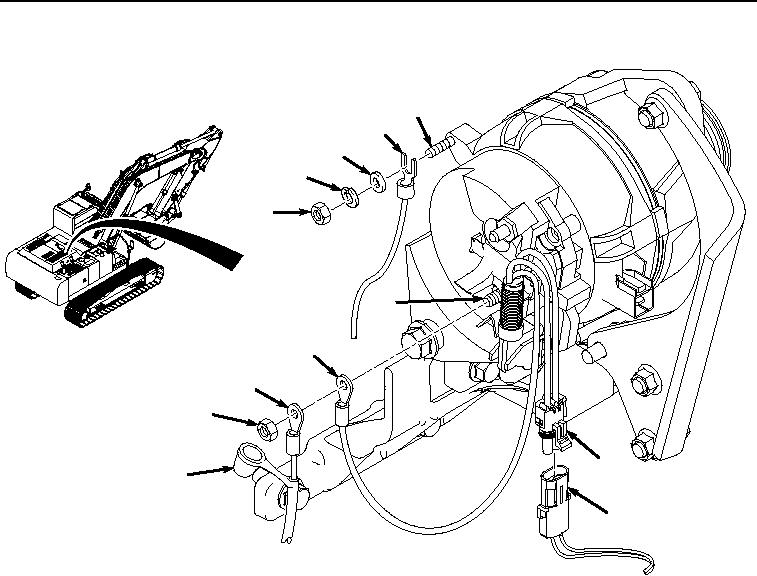

Figure 17. Remove Wiring Harness From Alternator.
61.
Disconnect wiring harness connector X70 (Figure 17, Item 146) from diode excite cable connector (Figure 17,
Item 147).
62.
Remove nut (Figure 17, Item 148), lockwasher (Figure 17, Item 149), washer (Figure 17, Item 150), and ground
wire connector (Figure 17, Item 151) from alternator ground stud (Figure 17, Item 152). Discard lockwasher.
63.
Disconnect wiring harness connector B16 (Figure 18, Item 153) from air filter restriction switch connector
(Figure 18, Item 154).
