REMOVAL - Continued
181
8
180
182
183
184
14
HYEX02505

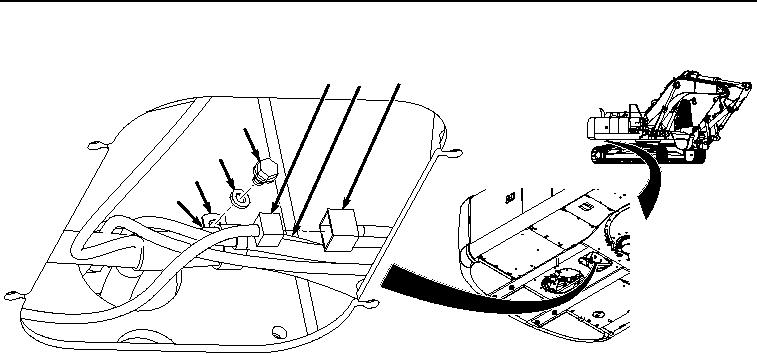

Figure 24. Disconnect Wiring Harness From X46 and Clamp Removal.
74.
Remove bolt (Figure 24, Item 182), washer (Figure 24, Item 183), clamp (Figure 24, Item 184), and wiring
harness (Figure 24, Item 8) from frame (Figure 24, Item 14).
75.
Remove wiring harness (Figure 25, Item 8) from machine.
