INSTALLATION - Continued
3.
Connect wiring harness connection X46 (Figure 27, Item 180) to auxiliary hydraulic circuit wiring harness
connector X46 (Figure 27, Item 181).
4.
Install clamp (Figure 28, Item 179) and wiring harness (Figure 28, Item 8) to frame (Figure 28, Item 14) with
washer (Figure 28, Item 178) and bolt (Figure 28, Item 177).
14
179
178
177
8
HYEX02504

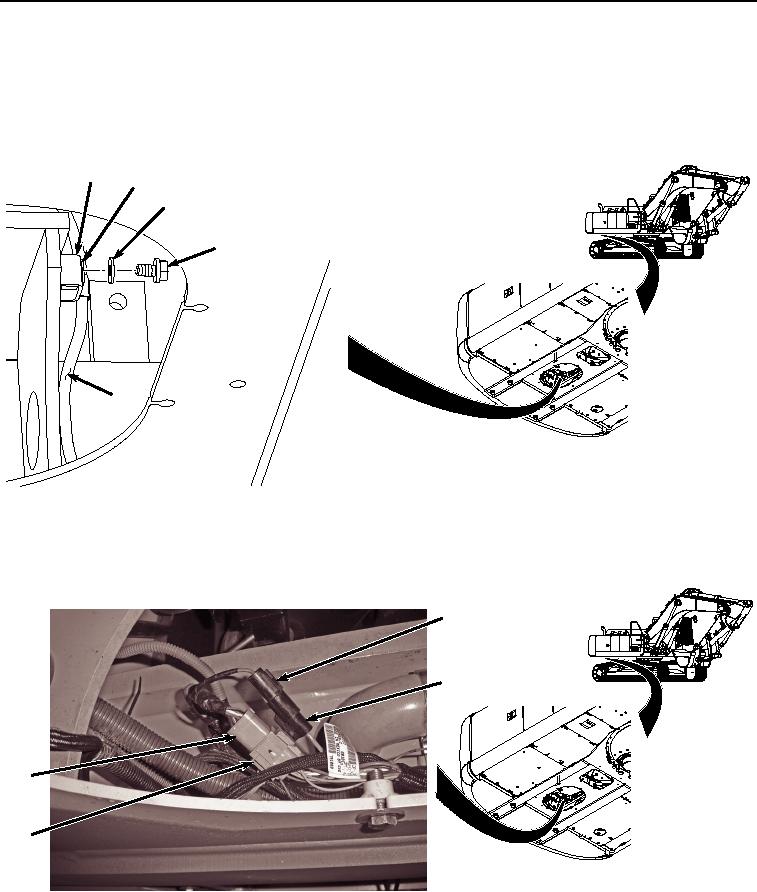

Figure 28.
Install Wiring Harness and Clamp To Underside A/C Compressor Clutch.
5.
Connect wiring harness connection H02 (Figure 29, Item 175) to engine interface wiring harness connector
H02 (Figure 29, Item 176).
175
176
173
174
HYEX02503
Figure 29.
Connect Wiring Harness To H01 and H02.
6.
Connect wiring harness connection H01 (Figure 29, Item 173) to engine interface wiring harness connector
H01 (Figure 29, Item 174).
