TM 5-3805-294-23-4
0516
REMOVAL - Continued
14
157
158
163
159
160
161
8
14
162
8
HYEX02501

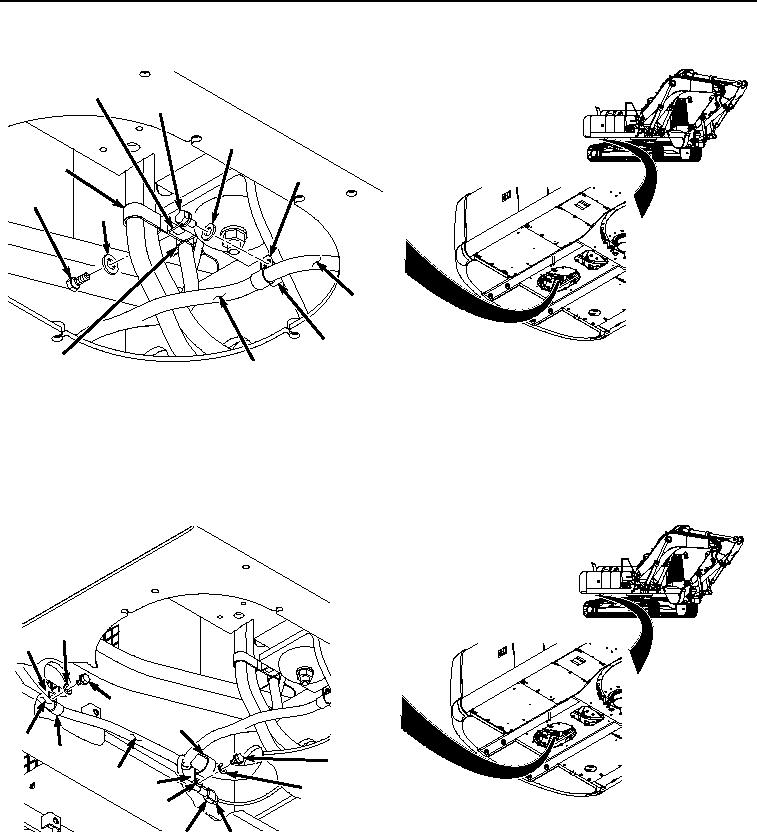

Figure 20.
Remove Wiring Harness and Clamps From Under Engine Compartment.
66.
Remove bolt (Figure 20, Item 160), washer (Figure 20, Item 161), clamp (Figure 20, Item 162), clamp (Figure
20, Item 163), and wiring harness (Figure 20, Item 8) from frame (Figure 20, Item 14).
67.
Disconnect wiring harness connection H4 (Figure 21, Item 164) from travel alarm connector H4 (Figure 21,
Item 165).
171
14
170
168
8
172
166
8
14
167
169
164
165
HYEX02502
Figure 21. Disconnect Wiring Harness From H4 Connector and Clamps.
68.
Remove bolt (Figure 21, Item 166), washer (Figure 21, Item 167), clamp (Figure 21, Item 168), bracket (Figure
21, Item 169), and wiring harness (Figure 21, Item 8) from frame (Figure 21, Item 14).
69.
Remove bolt (Figure 21, Item 170), washer (Figure 21, Item 171), and clamp (Figure 21, Item 172), and wiring
harness (Figure 21, Item 8) from frame (Figure 21, Item 14).
