INSTALLATION - Continued
8
124
123
130, 131, 132
117
14
116 126
125
127, 128, 129
HYEX02496

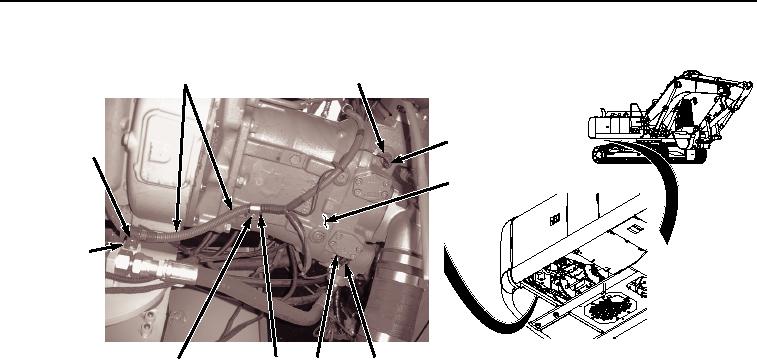

Figure 36. Install Wiring Harness To Bottom Of Pump.
22.
Install clamp (Figure 36, Item 129), wiring harness (Figure 36, Item 8), and bracket (Figure 36, Item 116) to
pump (Figure 36, Item 117) with washer (Figure 36, Item 128) and bolt (Figure 36, Item 127).
23.
Connect wiring harness connector B35 (Figure 36, Item 125) to pump 1 delivery pressure sensor (Figure 36,
Item 126).
24.
Connect wiring harness connector B37 (Figure 36, Item 123) to pump 2 delivery pressure sensor (Figure 36,
Item 124).
25.
Install clamp (Figure 37, Item 122), wiring harness (Figure 37, Item 8), and bracket (Figure 37, Item 116) to
pump (Figure 37, Item 117) with washer (Figure 37, Item 121) and bolt (Figure 37, Item 120).
