INSTALLATION - Continued
104, 105, 106
14
14
106
105
8
104
8
HYEX02492

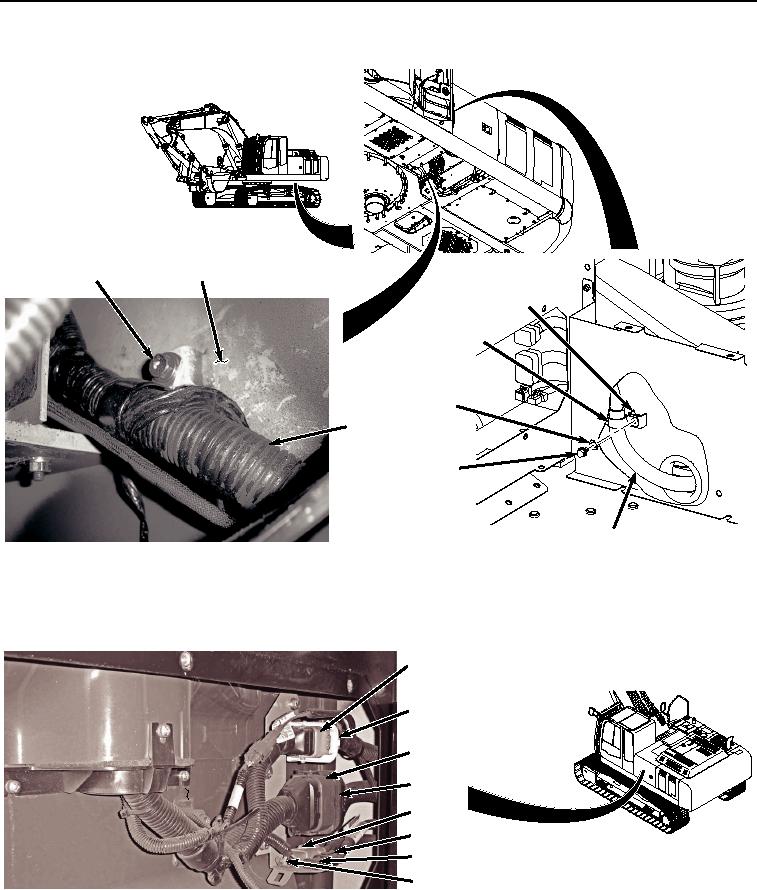

Figure 38. Install Wiring Harness To Area Behind Storage Compartment.
32.
Connect wiring harness connection X42 (Figure 39, Item 102) to cab wiring harness W1 at connector X42
(Figure 39, Item 103).
97
96
99
98
102
100
101
103
HYEX02491
Figure 39. Connect Wiring Harness To Cab Wiring Harness (W1).
33.
Connect wiring harness connection X41 (Figure 39, Item 100) to cab wiring harness W1 at connector X41
(Figure 39, Item 101).
