INSTALLATION - Continued
78
77
76
79
80
8
49
76
74
75
HYEX02487

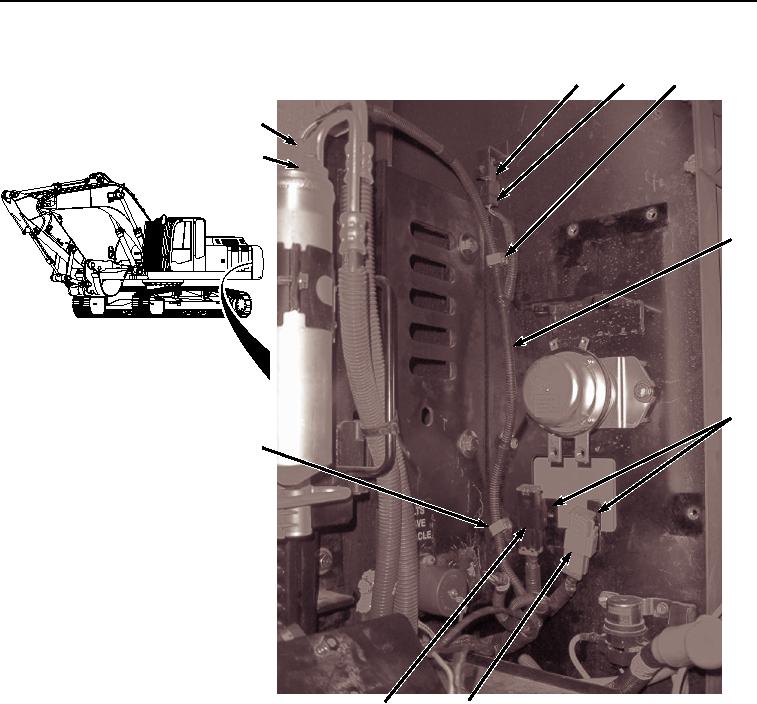

Figure 44. Install Wiring Harness To Cover, B22, and B20.
45.
Connect wiring harness connector B22 (Figure 44, Item 77) to ambient air temperature sensor B22 (Figure 44,
Item 78).
46.
Insert cable (Figure 44, Item 8) in two clips (Figure 44, Item 76) and lock in place.
47.
Slide F60 fuse holder (Figure 44, Item 74) and F61 fuse holder (Figure 44, Item 75) to tabs of cover (Figure
44, Item 49).
48.
Install machine wiring harness terminal (Figure 45, Item 72) to top of battery relay terminal (Figure 45, Item
73) with washer (Figure 45, Item 71) and screw (Figure 45, Item 70).
