INSTALLATION - Continued
47
49
48
69
46
47
65
73
64
47
63
58
52
62
56
46
61
55
60
51
59
68
54
67
53
50
66
72
57
71
70
HYEX02486

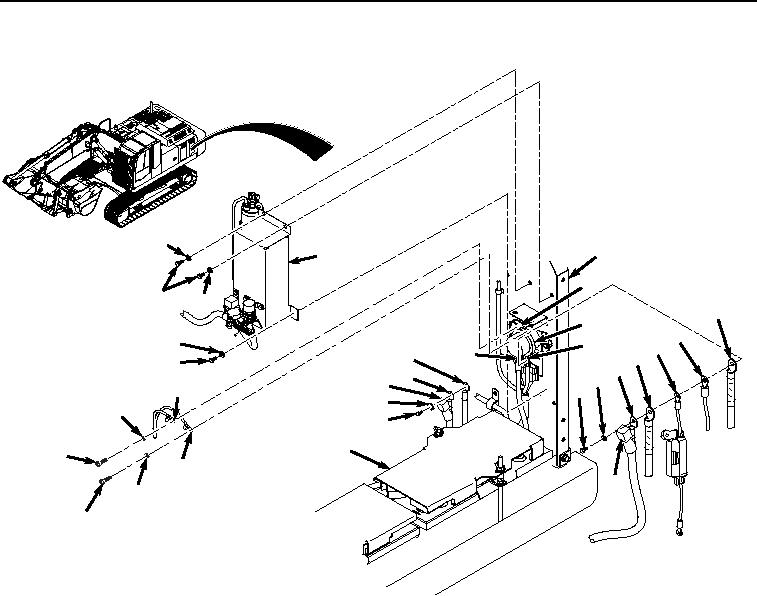

Figure 45. Install Wiring Harness To Battery Relay.
49.
Install machine wiring harness terminal (Figure 45, Item 68) to top of battery relay terminal (Figure 45, Item
69) with washer (Figure 45, Item 67) and screw (Figure 45, Item 66).
50.
Install battery positive cable (Figure 45, Item 61), machine wiring harness connector (Figure 45, Item 62), glow
plug fuse holder wiring harness connector (Figure 45, Item 63), coolant heater fuse holder connector (Figure
45, Item 64), and slave receptacle positive cable (Figure 45, Item 65) to battery relay terminal (Figure 45, Item
58) with lockwasher (Figure 45, Item 60) and bolt (Figure 45, Item 59).
51.
Install protective boot (Figure 45, Item 57) to bolt (Figure 45, Item 60) and battery relay terminal (Figure 45,
Item 58).
52.
Install starter positive cable (Figure 45, Item 55), machine wiring harness connector (Figure 45, Item 56) to
battery relay terminal (Figure 45, Item 52) with bolt (Figure 45, Item 53) and washer (Figure 45, Item 54).
53.
Move protective boot (Figure 45, Item 51) to bolt (Figure 45, Item 53) and battery relay terminal (Figure 45,
Item 52).
54.
Position cover (Figure 45, Item 48) to cover (Figure 45, Item 49).
55.
Install cover (Figure 45, Item 48) to cover (Figure 45, Item 49) with three washers (Figure 45, Item 47) and
bolts (Figure 45, Item 46).
56.
Connect wiring harness connector B30 (Figure 46, Item 44) to boom up pressure solenoid (Figure 46, Item
45).
