TM 5-3805-294-23-4
0516
INSTALLATION - Continued
2
1
3
4
4
1
2
3
HYEX02482

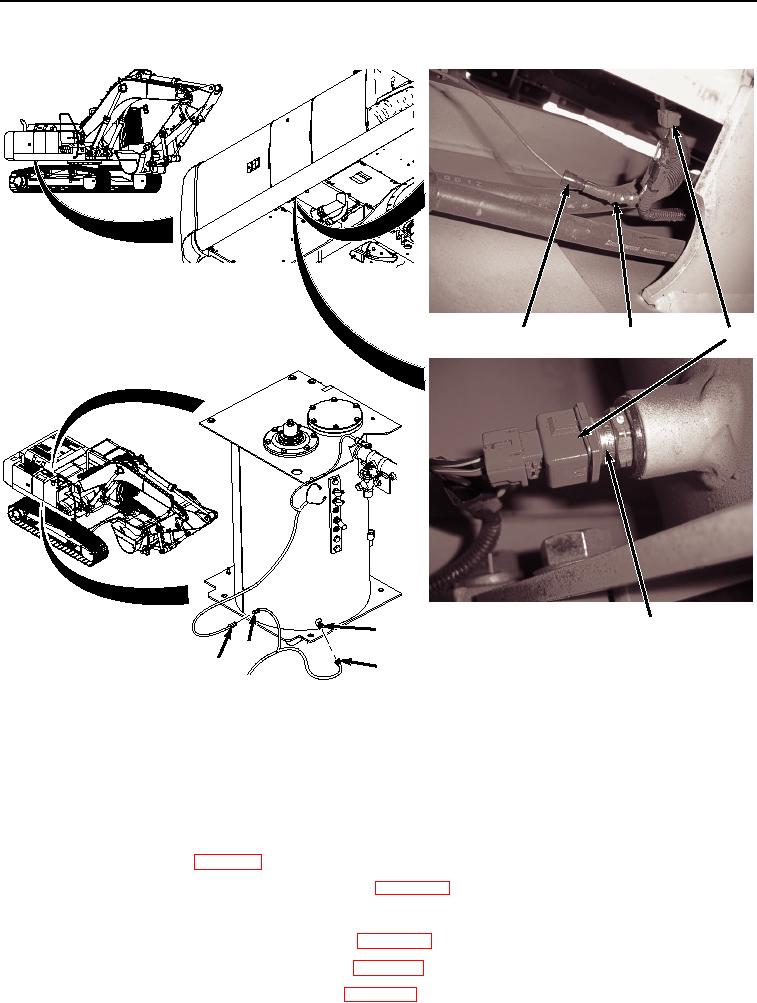

Figure 50. Install Wiring Harness To B27 and B40.
77.
Connect wiring harness connector B27 (Figure 50, Item 1) to hydraulic filter restriction wiring harness (Figure
50, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install center to cover. (WP 0589)
2.
Install storage compartment forward access panel. (WP 0609)
3.
Store vandal protection kit in storage compartment (TM 5-3805-294-10). (Volume 5, WP 0794)
4.
Install engine compartment lower access cover. (WP 0593)
5.
Install pump compartment lower access cover. (WP 0601)
6.
Install hydraulic reservoir lower access cover. (WP 0599)
