TM 5-3805-294-23-4
0609
REMOVAL - Continued
3.
Remove four bolts (Figure 1, Item 5) and washers (Figure 1, Item 6) from hose reel (Figure 1, Item 4).
4.
Move hose reel (Figure 1, Item 4) to clear access panel (Figure 1, Item 7).
5.
Remove five bolts (Figure 2, Item 8), washers (Figure 2, Item 9), and access panel (Figure 2, Item 7) from
machine.
9
8
7
HYEX01479

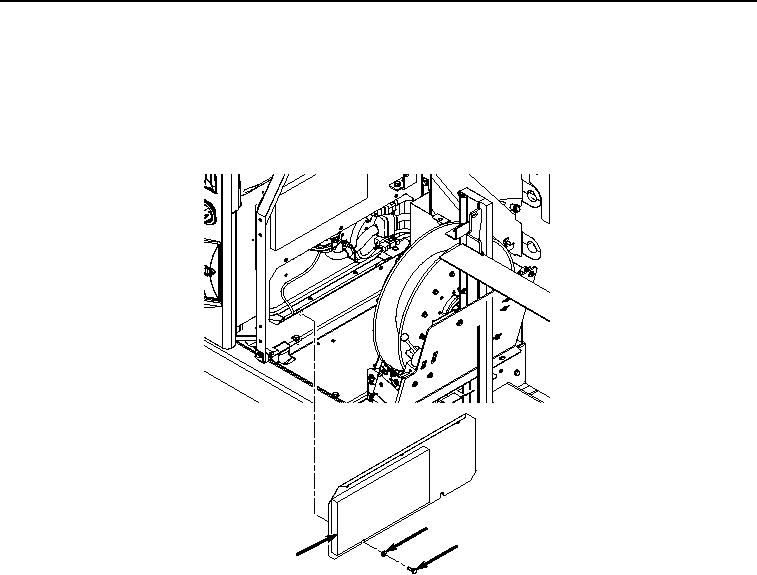

Figure 2. Access Panel Removal.
END OF TASK
INSTALLATION
1.
Install access panel (Figure 3, Item 7) to machine with five bolts (Figure 3, Item 8) and washers (Figure 3, Item
9).
