Figure 5. Isolator Removal.
FOLLOW-ON MAINTENANCE

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  840    841    842    843    844  845  846    847    848    849    850
.
TM 5-3805-294-23-4
0608
ISOLATOR INSTALLATION
1.
Layout isolator (Figure 6, Item 10) and isolator (Figure 6, Item 11) on door (Figure 6, Item 4) for placement
prior to installing with adhesive.
10
4
11
HYEX01141

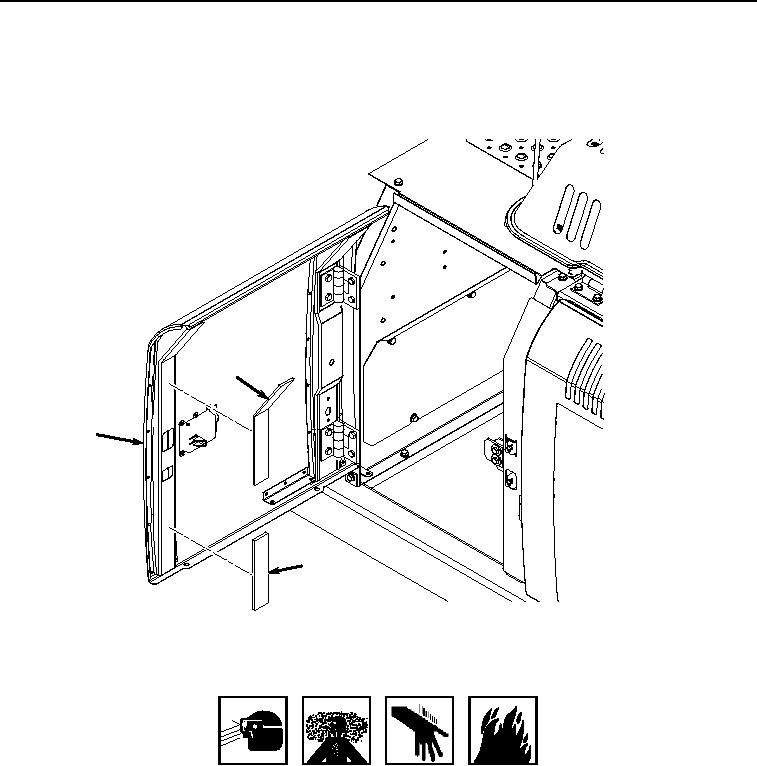

Figure 6.
Isolator Installation.
WARNING
ADHESIVES AND SEALANTS
2.
Apply adhesive to the back side of isolator (Figure 6, Item 10).
3.
Apply isolator (Figure 6, Item 10) to door (Figure 6, Item 4) and apply pressure.
4.
Apply adhesive to the back side of isolator (Figure 6, Item 11).
5.
Apply isolator (Figure 6, Item 11) to door (Figure 6, Item 4) and apply pressure.
END OF TASK
0608-7
