DOOR INSTALLATION
1.
Install hold open latch (Figure 2, Item 6) to door (Figure 2, Item 4).
5
1
2
3
6
HYEX00222
4

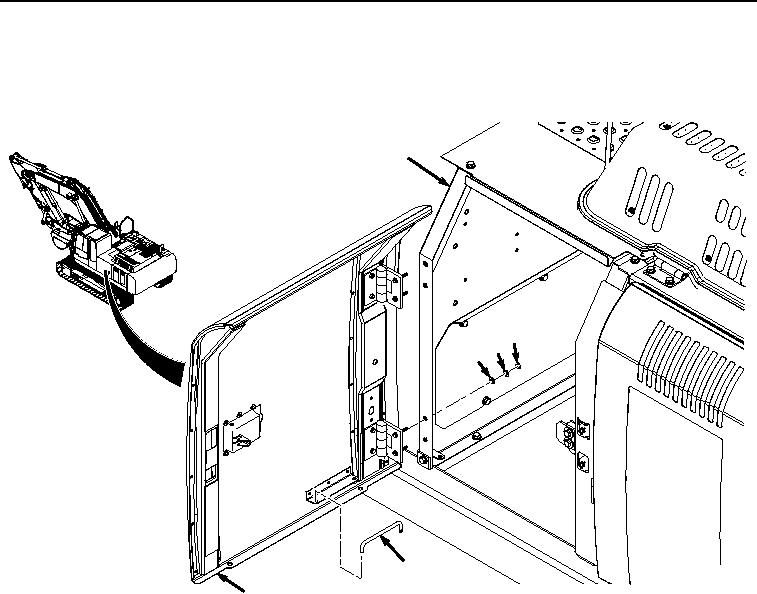

Figure 2.
Storage Compartment Door Installation.
2.
With the aid of an assistant, position and align door (Figure 2, Item 4) to storage compartment cover (Figure
2, Item 5).
3.
With the aid of an assistant, install door (Figure 2, Item 4) to storage compartment cover (Figure 2, Item 5) with
four washers (Figure 2, Item 3), lockwashers (Figure 2, Item 2), and nuts (Figure 2, Item 1).
END OF TASK
