TM 5-3805-294-23-4
0607
INSTALLATION - Continued
10
24
25
26
23
HYEX02134

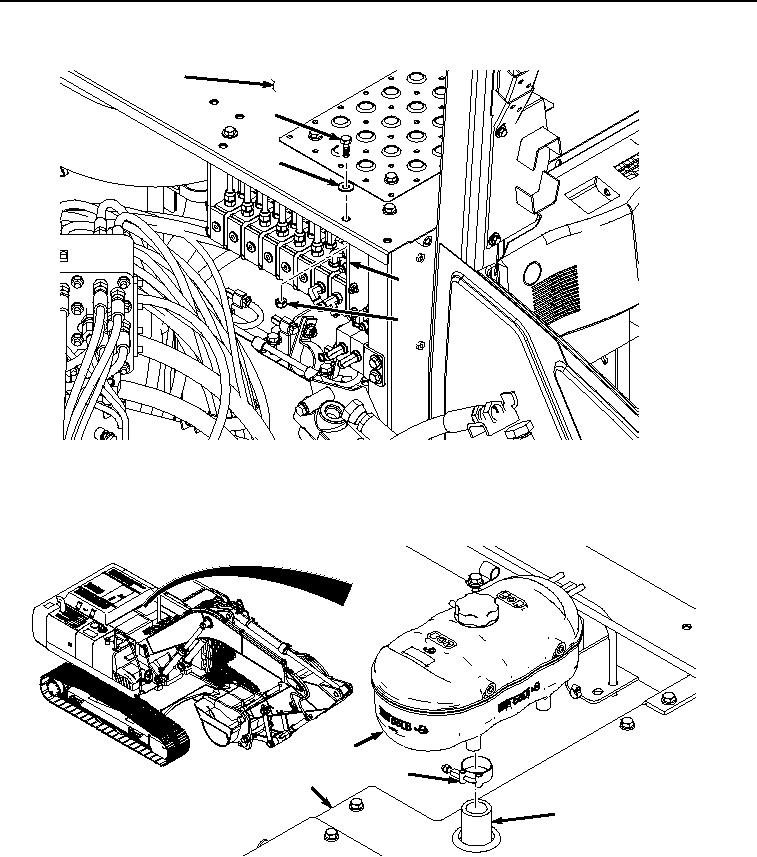

Figure 9. Connect Solenoid Bracket.
7.
Insert hose (Figure 10, Item 22) through opening in cover (Figure 10, Item 10) to permit tank (Figure 10, Item
14) installation.
14
21
10
22
HYEX00702
Figure 10. Radiator Surge Tank Installation.
NOTE
Remove caps and plugs from tank (Figure 10, Item 14) and hose (Figure 10, Item 22).
0607-8
