TM 5-3805-294-23-4
0607
REMOVAL - Continued
14
21
10
22
HYEX00702

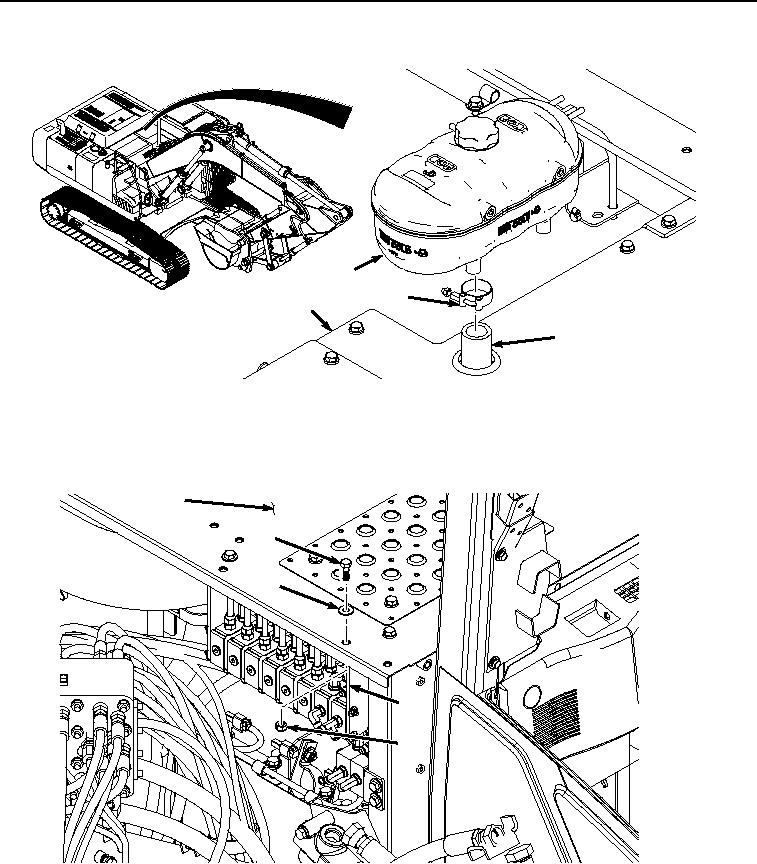

Figure 5. Radiator Surge Tank Removal.
13.
Remove two locknuts (Figure 6, Item 23), bolts (Figure 6, Item 24), and washers (Figure 6, Item 25) from cover
(Figure 6, Item 10) and bracket (Figure 6, Item 26). Discard locknuts.
10
24
25
26
23
HYEX02134
Figure 6. Disconnect Solenoid Bracket.
NOTE
Forward radiator top cover (Figure 3, Item 7) and tank (Figure 5, Item 14) shown removed
for clarity.
