TM 5-3805-294-23-4
0607
INSTALLATION - Continued
4
5
8
9
6
10
7
HYEX00463

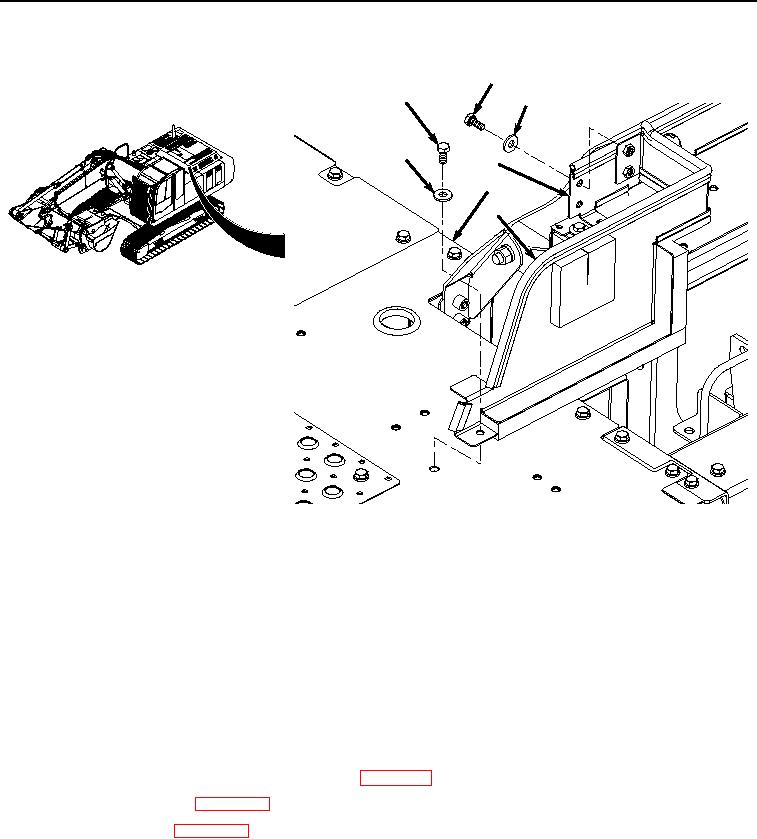

Figure 12.
Forward Radiator Top Cover Installation.
17.
Install forward radiator top cover (Figure 12, Item 7) to cover (Figure 12, Item 10) with bolt (Figure 12, Item 8)
and washer (Figure 12, Item 9).
18.
Apply thread lock to threads of two bolts (Figure 12, Item 4).
19.
Install two bolts (Figure 12, Item 4) and washers (Figure 12, Item 5) to attach forward radiator top cover (Figure
12, Item 7) to rear radiator top cover (Figure 12, Item 6).
END OF TASK
FOLLOW ON MAINTENANCE
1.
Install engine compartment lower access cover. (WP 0593)
2.
Install center top cover. (WP 0589)
3.
Install engine cover. (WP 0594)
4.
Fill cooling system. (Volume 3, WP 0471)
5.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
