REMOVAL - Continued
11
16
15 13
12
17
9
14
10
18
22
13
12
4
20
19
12
21
2
23
6
24
8
HYEX03373

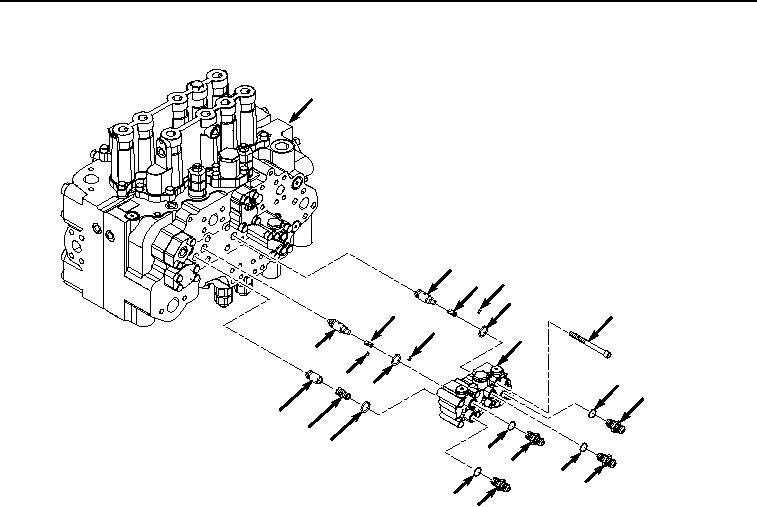

Figure 2. Valve Removal.
6.
Remove three O-rings (Figure 2, Item 12), two O-rings (Figure 2, Item 13), and O-ring (Figure 2, Item 14) from
between housing (Figure 2, Item 10) and control valve (Figure 2, Item 11). Discard O-rings.
7.
Remove spring (Figure 2, Item 15) from control valve (Figure 2, Item 11).
8.
Remove poppet (Figure 2, Item 16) from control valve (Figure 2, Item 11).
9.
Remove spring (Figure 2, Item 17) from control valve (Figure 2, Item 11).
10.
Remove poppet (Figure 2, Item 18) from control valve (Figure 2, Item 11).
11.
Remove spring (Figure 2, Item 19) from control valve (Figure 2, Item 11).
12.
Remove poppet (Figure 2, Item 20) from control valve (Figure 2, Item 11).
13.
Remove fitting (Figure 2, Item 2) and O-ring (Figure 2, Item 21) from housing (Figure 2, Item 10).
14.
Remove O-ring (Figure 2, Item 21) from fitting (Figure 2, Item 2). Discard O-ring.
15.
Remove fitting (Figure 2, Item 4) and O-ring (Figure 2, Item 22) from housing (Figure 2, Item 10).
16.
Remove O-ring (Figure 2, Item 22) from fitting (Figure 2, Item 4). Discard O-ring.
17.
Remove fitting (Figure 2, Item 6) and O-ring (Figure 2, Item 23) from housing (Figure 2, Item 10).
18.
Remove O-ring (Figure 2, Item 23) from fitting (Figure 2, Item 6). Discard O-ring.
19.
Remove fitting (Figure 2, Item 8) and O-ring (Figure 2, Item 24) from housing (Figure 2, Item 10).
