TM 5-3805-294-23-4
0493
INSTALLATION - Continued
10
11
9
17
12
13
7
14
15
5
6
16
8
19
21
20
HYEX00183
18

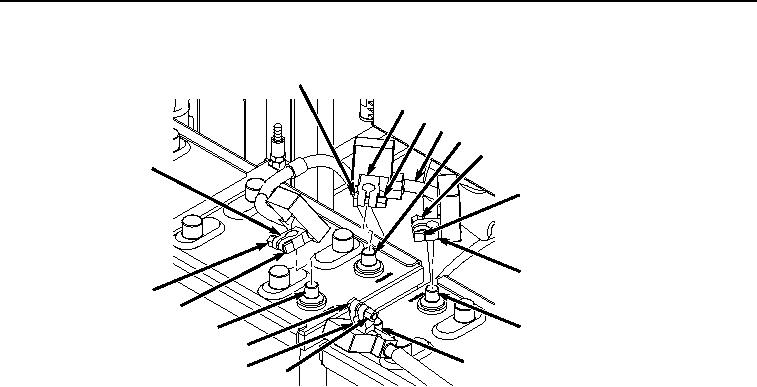

Figure 5. Battery Cable Installation.
2.
Tighten nut (Figure 5, Item 18) to screw (Figure 5, Item 19) on positive battery terminal clamp (Figure 5, Item
20).
3.
Install battery jumper cable (Figure 5, Item 17) by installing negative battery terminal clamp (Figure 5, Item 15)
to negative battery terminal (Figure 5, Item 16).
4.
Tighten nut (Figure 5, Item 13) to screw (Figure 5, Item 14) on negative battery terminal clamp (Figure 5, Item
15).
5.
Install positive battery terminal clamp (Figure 5, Item 11) to positive battery terminal (Figure 5, Item 12).
6.
Tighten nut (Figure 5, Item 9) to screw (Figure 5, Item 10) on positive battery terminal clamp (Figure 5, Item
11).
7.
Install negative battery terminal clamp (Figure 5, Item 7) to negative battery terminal (Figure 5, Item 8).
8.
Tighten nut (Figure 5, Item 5) to screw (Figure 5, Item 6) on negative battery terminal cable clamp (Figure 5,
Item 7).
9.
Install two covers (Figure 6, Item 3) to four screws (Figure 6, Item 4) with four washers (Figure 6, Item 2) and
nuts (Figure 6, Item 1).
