TM 5-3805-294-23-4
0493
REMOVAL - Continued
10
11
9
17
12
13
7
14
15
5
6
16
8
19
21
20
HYEX00183
18

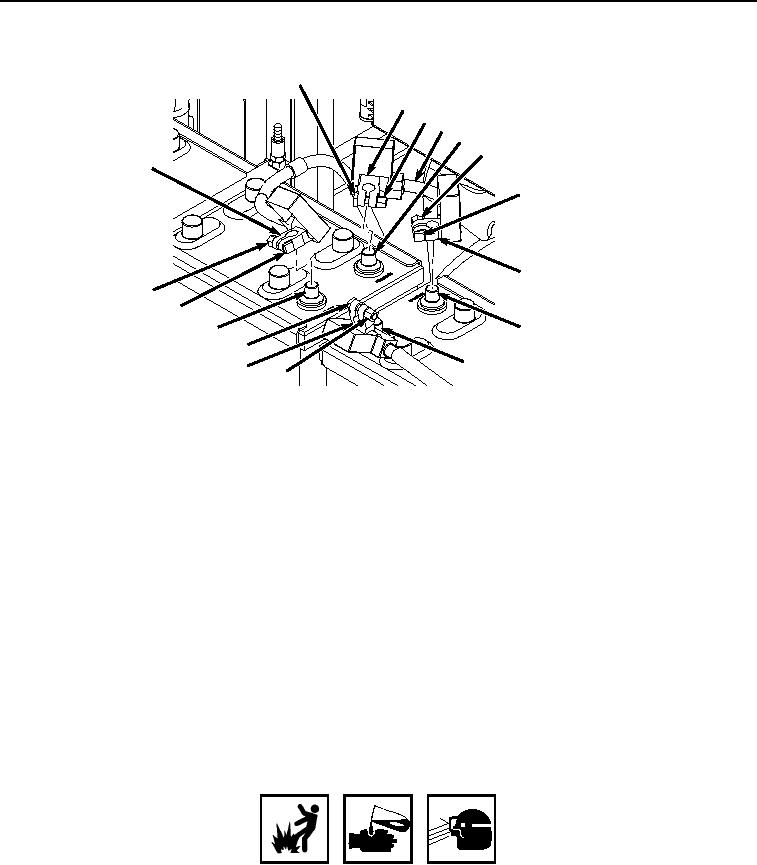

Figure 2.
Battery Cable Removal.
3.
Remove negative battery terminal clamp (Figure 2, Item 7) from negative battery terminal (Figure 2, Item 8).
4.
Loosen nut (Figure 2, Item 9) from screw (Figure 2, Item 10) on positive battery terminal clamp (Figure 2, Item
11).
5.
Remove positive battery terminal clamp (Figure 2, Item 11) from positive battery terminal (Figure 2, Item 12).
6.
Loosen nut (Figure 2, Item 13) from screw (Figure 2, Item 14) on negative battery terminal clamp (Figure 2,
Item 15).
7.
Remove negative battery terminal clamp (Figure 2, Item 15) from negative battery terminal (Figure 2, Item 16)
and remove battery jumper cable (Figure 2, Item 17).
8.
Loosen nut (Figure 2, Item 18) from screw (Figure 2, Item 19) on positive battery terminal clamp (Figure 2,
Item 20).
9.
Remove positive battery terminal clamp (Figure 2, Item 20) from positive battery terminal (Figure 2, Item 21).
END OF TASK
SERVICE
WARNING
LEAD-ACID BATTERIES
Avoid battery electrolyte contact with skin, eyes, and clothing. If battery electrolyte spills, take
the following immediate action to stop burning effects:
External - If battery electrolyte contacts skin, immediately flush affected area with cold running
water. Failure to comply may result in injury or death to personnel.
