INSTALLATION - Continued
2
1
7, 8
9
6
3, 4, 5
HYEX01286

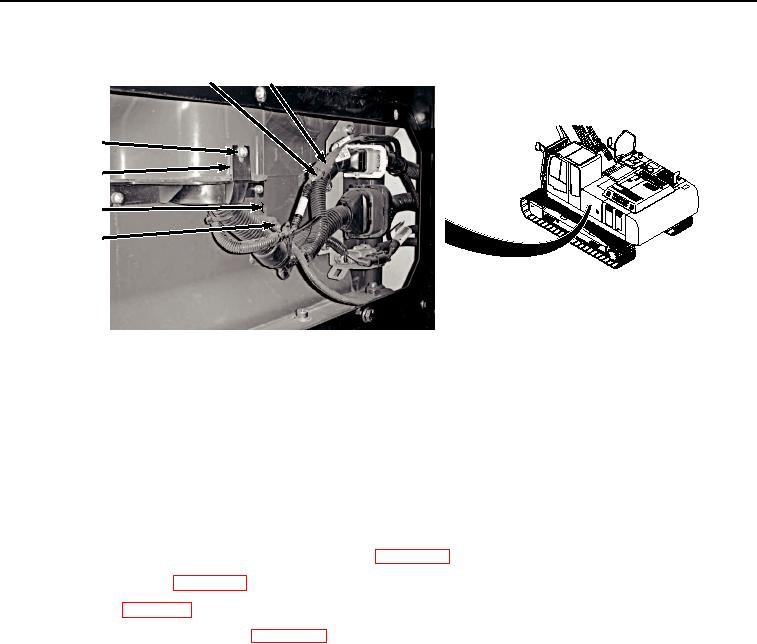

Figure 8.
Auxiliary Control Wiring Harness (W15) to Crush-all Boom Wiring Harness Installation.
7.
Install two clamps (Figure 8, Item 5) to frame (Figure 8, Item 6) with two washers (Figure 8, Item 4) and bolts
(Figure 8, Item 3).
8.
Connect auxiliary control wiring harness (W15) at connection SR/H Y34 (Figure 8, Item 1) to crush-all main
body harness (Figure 8, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install storage compartment forward access panel. (WP 0609)
2.
Install cab rear tray. (WP 0566)
3.
Install seat. (WP 0580)
4.
Connect negative battery cable. (WP 0521)
5.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
