TM 5-3805-294-23-4
0492
REMOVAL - Continued
2
1
7, 8
9
6
3, 4, 5
HYEX01286

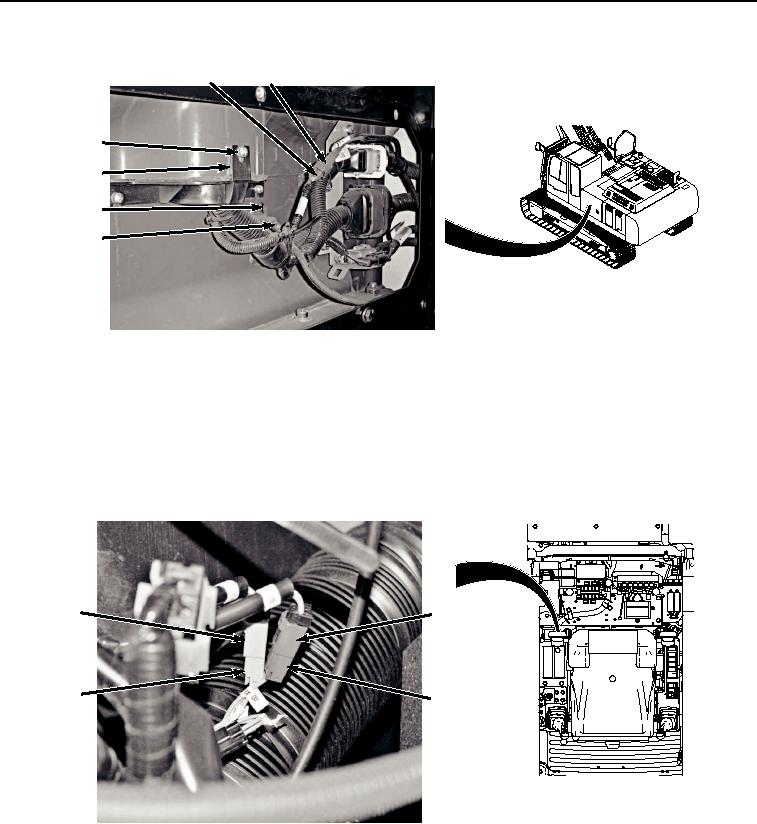

Figure 1.
Auxiliary Control Wiring Harness (W15) from Crush-all Boom Wiring Harness Removal.
2.
Remove two bolts (Figure 1, Item 3), washers (Figure 1, Item 4), and clamps (Figure 1, Item 5) from frame
(Figure 1, Item 6).
3.
Remove three bolts (Figure 1, Item 7), washers (Figure 1, Item 8), and cover (Figure 1, Item 9) from frame
(Figure 1, Item 6).
4.
Disconnect auxiliary control wiring harness (W15) at connection B (Figure 2, Item 10) from right-hand pilot
control harness connection B (Figure 2, Item 11).
12
10
13
11
HYEX01287
Figure 2.
Auxiliary Control Wiring Harness (W15) Connection B and C Disconnect.
5.
Disconnect auxiliary control wiring harness (W15) at connection C (Figure 2, Item 12) from right-hand pilot
control harness connection C (Figure 2, Item 13).
6.
Remove screw (Figure 3, Item 14), lockwasher (Figure 3, Item 15), washer (Figure 3, Item 16), and relay K30
(Figure 3, Item 17) from bracket (Figure 3, Item 18). Discard lockwasher.
