INSTALLATION - Continued
1
2
3
4
HYEX00903

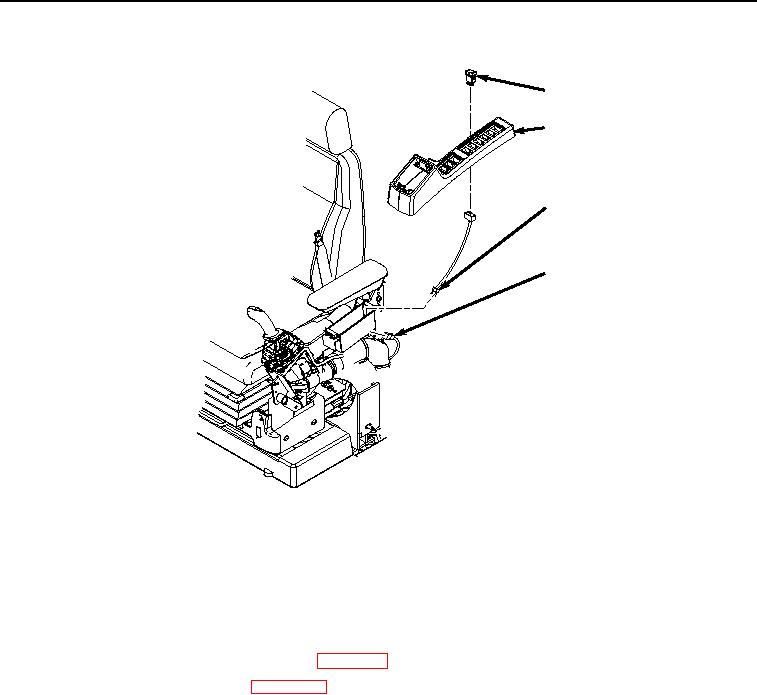

Figure 2.
Auxiliary Control Switch And Wiring Harness Installation.
2.
Install switch (Figure 2, Item 1) to console cover (Figure 2, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install cab left-hand console upper cover. (WP 0564)
2.
Connect negative battery cable. (WP 0521)
3.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
