TM 5-3805-294-23-4
0491
REMOVAL - Continued
1
2
3
4
HYEX00903

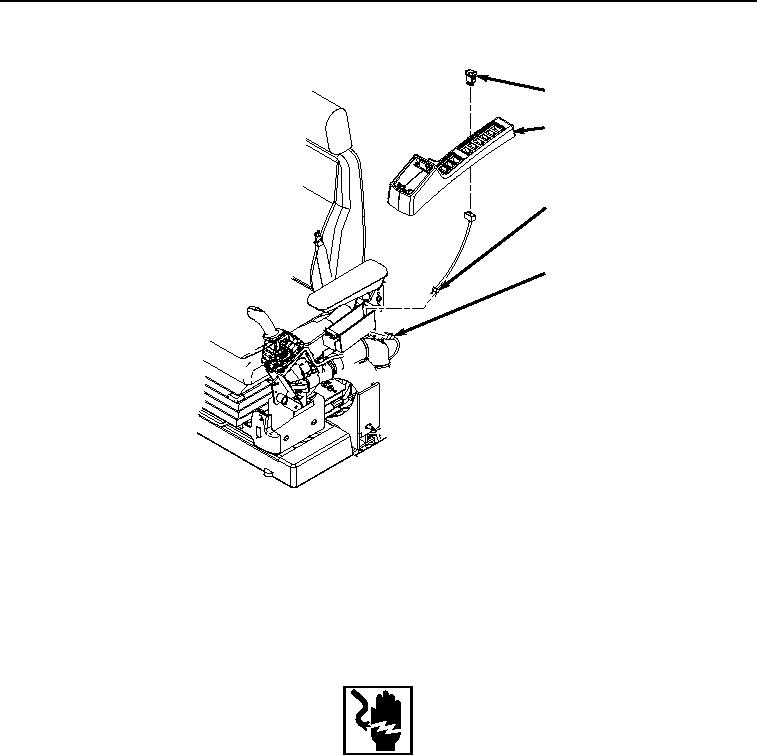

Figure 1.
Auxiliary Control Switch And Wiring Harness Removal.
2.
Remove switch jumper wiring harness (Figure 1, Item 3) from auxiliary control wiring harness W15 connector
S34 (Figure 1, Item 4).
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install wires, connectors, and wiring harnesses as noted prior to removal.
Install tie wraps as required.
1.
Install switch jumper wiring harness (Figure 2, Item 3) to auxiliary control wiring harness W15 connector S34
(Figure 2, Item 4).
