TM 5-3805-294-23-4
FIELD MAINTENANCE
SEAT REPLACEMENT
INITIAL SETUP:
References
Tools and Special Tools
TM 5-3805-294-24P: Fig. 117, Fig. 118 (Volume 5,
Tool Kit, General Mechanic's: Automotive
WP 0794)
(Volume 5, WP 0796, Table 2, Item 119)
DA FORM 5988-E or DA FORM 2404 (Volume 5,
Wrench, Torque, 20-100 lb-ft (27-136 Nm),
WP 0794)
3/8 in. Drive (Volume 5, WP 0796, Table 2,
Item 127)
Equipment Condition
Machine safely parked and shut down
Materials/Parts
(TM 5-3805-294-10). (Volume 5, WP 0794)
Lockwasher (Volume 5, WP 0798, Table 1, Item
Seat belt removed. (WP 0579)
56) Qty: 3
Time to Complete
Personnel Required
Construction Equipment Repairer 91L (2)
2.0 Hour(s)
SEAT REMOVAL
1.
Remove three caps (Figure 1, Item 1) from cover (Figure 1, Item 2).
6
5
4
2
3
1
HYEX00832

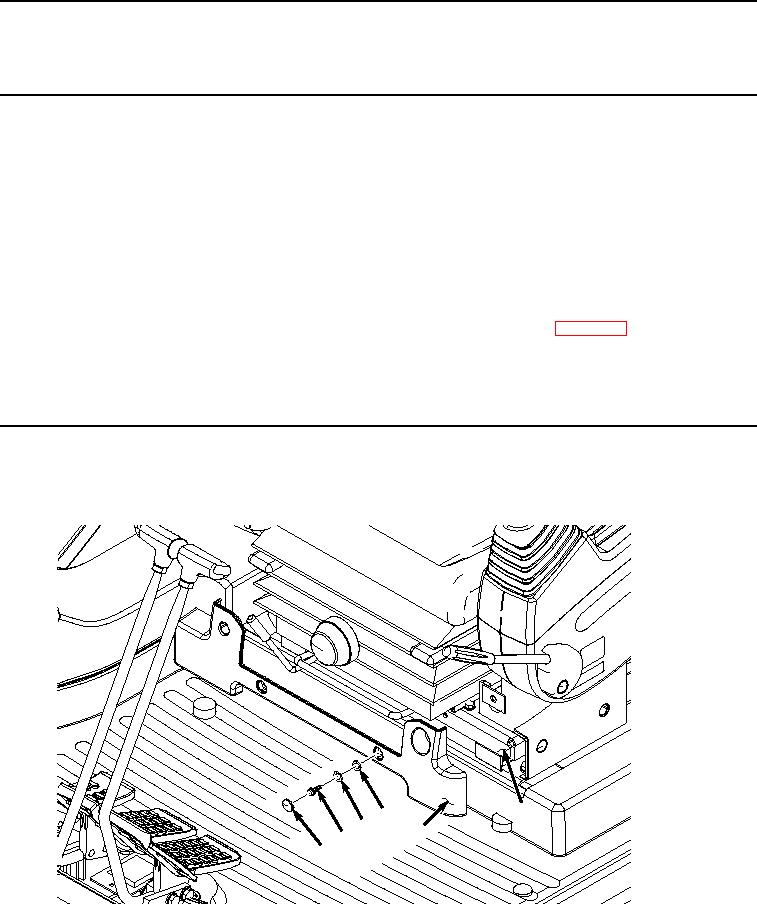

Figure 1.
Cap and Cover Removal.
