SEAT REMOVAL - Continued
2.
Remove three screws (Figure 1, Item 3), lockwashers (Figure 1, Item 4), washers (Figure 1, Item 5) and cover
(Figure 1, Item 2) from seat stand (Figure 1, Item 6). Discard lockwashers.
3.
Push lever (Figure 2, Item 7) down and move seat stand (Figure 2, Item 6) forward until it stops.
9
7
8
6
HYEX00833

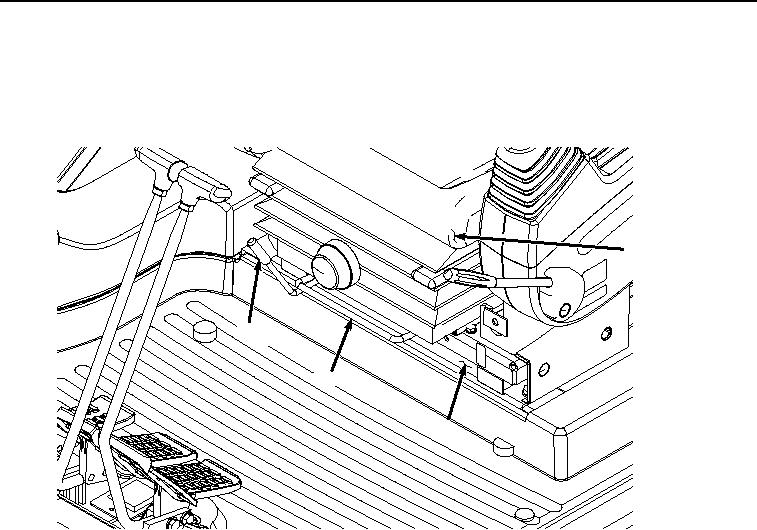

Figure 2. Move Seat Forward.
4.
Pull lever (Figure 2, Item 8) up and move seat (Figure 2, Item 9) forward until it stops.
5.
Remove two bolts (Figure 3, Item 10), washers (Figure 3, Item 11), and seat stop (Figure 3, Item 12) from seat
stand (Figure 3, Item 6).
