REMOVAL - Continued
14.
Remove electrical connector M6 (Figure 4, Item 29) from windshield washer pump connector (Figure 4, Item
30) and place to the side.
32
29
31
30
HYEX00121

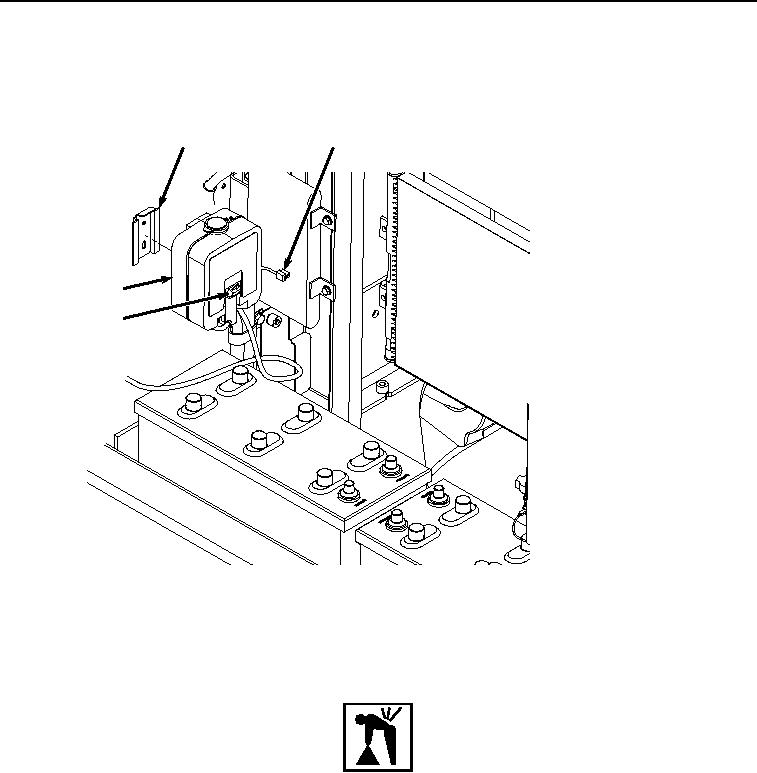

Figure 4. Windshield Reservoir Removal.
15.
Remove windshield washer reservoir (Figure 4, Item 31) from bracket (Figure 4, Item 32) by pulling up and
away from bracket and place out of the way behind batteries.
WARNING
Battery weighs approximately 100 lb (45 kg). Do not attempt to lift or move battery without
the aid of an assistant and a suitable lifting device. Failure to comply may result in injury or
death to personnel.
NOTE
If disposal is required, dispose of batteries IAW unit SOP.
16.
With the aid of an assistant, and using battery handles, remove two batteries (Figure 5, Item 33) from frame
(Figure 5, Item 28).
