TM 5-3805-294-23-4
0496
REMOVAL - Continued
presence of heat, flame, or spark may cause fire and/or explosion. Failure to comply may
result in injury or death to personnel.
Wear proper eye protection, gloves, and an apron when working near batteries. Failure to
comply may result in injury or death to personnel.
WARNING
Prior to working on or around vehicle, remove all jewelry such as rings, ID tags, bracelets,
etc. Jewelry and tools can catch on equipment, contact positive electrical circuits, and
cause a direct short, severe burns, or electrical shock. Failure to comply may result in
injury or death to personnel.
Secure terminal clamps, cables, and wires away from battery terminals. Loose terminal
clamps can make contact with battery terminals and cause a direct short, severe burns,
or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
If one battery in a 24-volt system has failed, replace both batteries.
1.

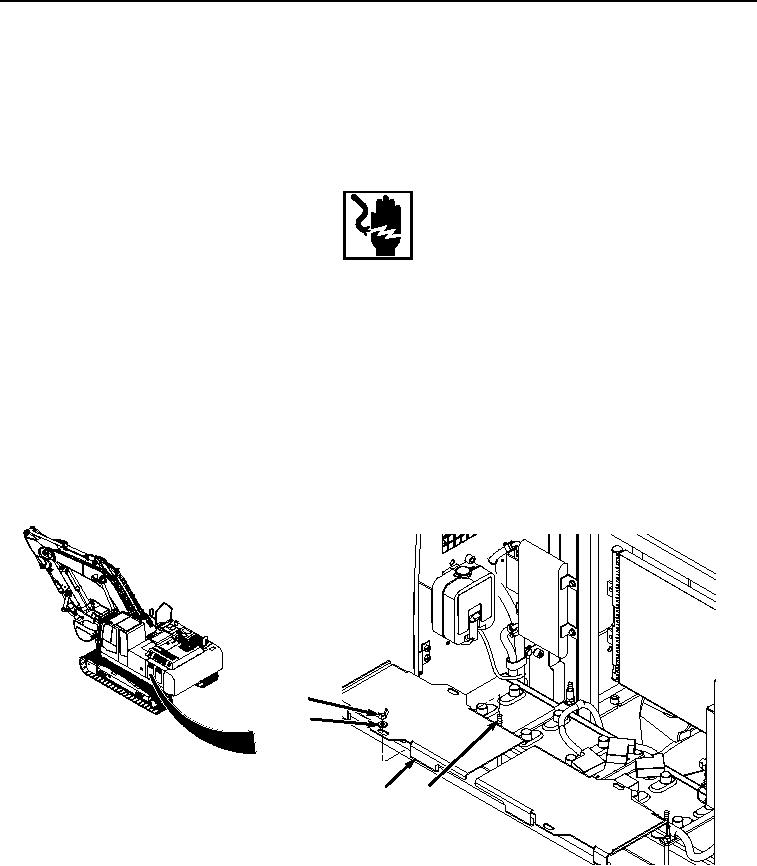

Remove four nuts (Figure 1, Item 1), washers (Figure 1, Item 2), and two covers (Figure 1, Item 3) from four
screws (Figure 1, Item 4).
1
2
4
3
HYEX00111
Figure 1.
Battery Covers Removal.
2.
Loosen nut (Figure 2, Item 5) from screw (Figure 2, Item 6) on negative battery terminal clamp (Figure 2, Item
7).
