TM 5-3805-294-23-4
0495
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
1.
Install two screws (Figure 2, Item 16), washers (Figure 2, Item 17), and battery relay K19 (Figure 2, Item 11)
to frame (Figure 2, Item 4).
4
3
11
2
17
1
14
16
13
12
9
8
15
7
13
6
5
10
6
5
HYEX00299

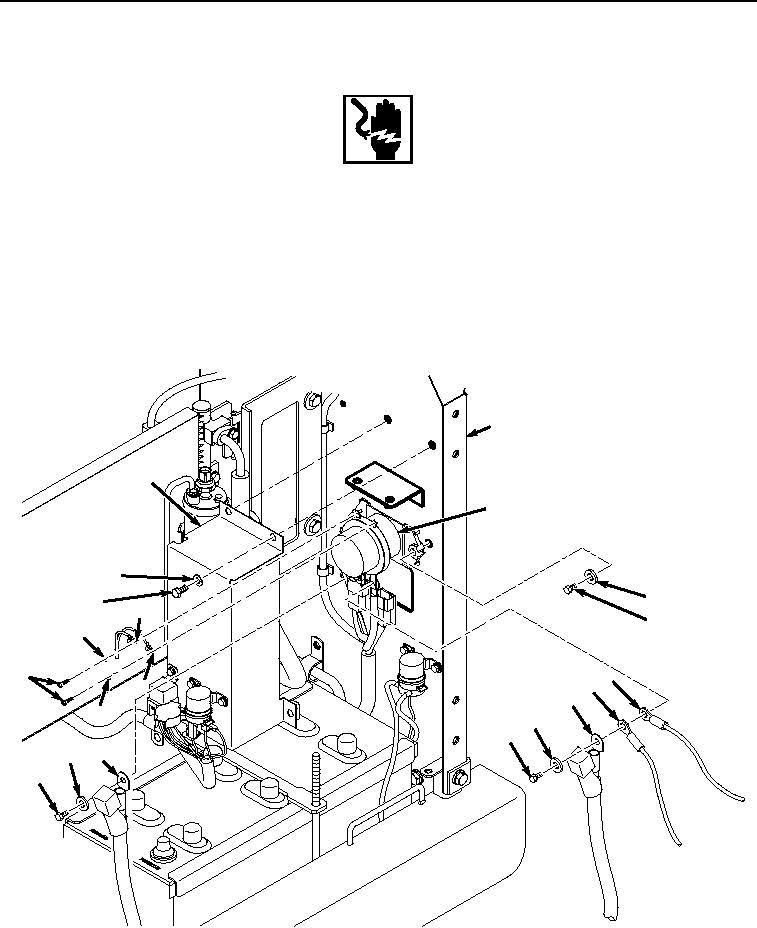

Figure 2.
Battery Relay Installation.
