INSTALLATION - Continued
9
10
11
5
7
6
4
15
14
13
8
12
HYEX00186

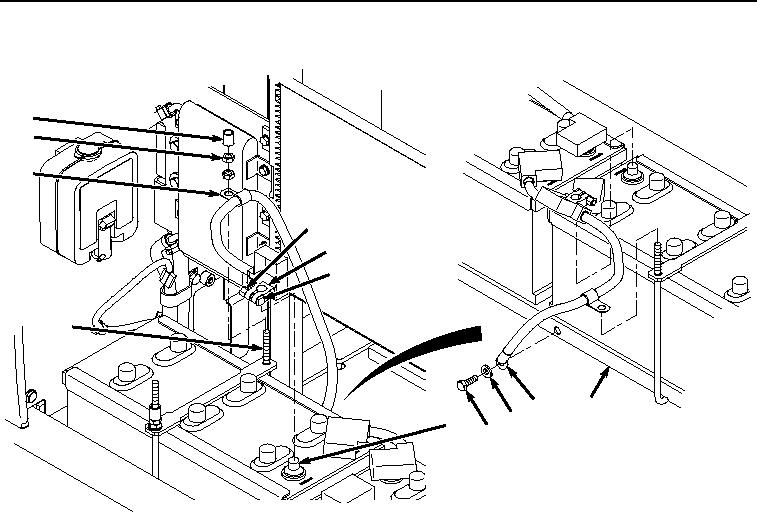

Figure 7.
Negative Battery Cable Installation.
11.
Install clamp (Figure 7, Item 11), two nuts (Figure 7, Item 10), and spacer (Figure 7, Item 9) to bolt (Figure 7,
Item 4).
12.
Install negative battery terminal clamp (Figure 7, Item 7) to negative battery terminal (Figure 7, Item 8).
13.
Tighten nut (Figure 7, Item 5) to screw (Figure 7, Item 6) on negative battery terminal clamp (Figure 7, Item
7).
14.
Install two covers (Figure 8, Item 3) to four bolts (Figure 8, Item 4), with four washers (Figure 8, Item 2) and
nuts (Figure 8, Item 1).
