TM 5-3805-294-23-4
0494
INSTALLATION - Continued
4.
Install positive battery terminal clamp (Figure 5, Item 27) to positive battery terminal (Figure 5, Item 28).
5.
Tighten nut (Figure 5, Item 25) to screw (Figure 5, Item 26) on positive battery terminal clamp (Figure 5, Item
27).
6.
Install battery jumper cable (Figure 6, Item 24) to positive battery terminal (Figure 6, Item 19) with positive
battery terminal clamp (Figure 6, Item 18).
17 18 16
24
20
22
21
19
23
HYEX00189

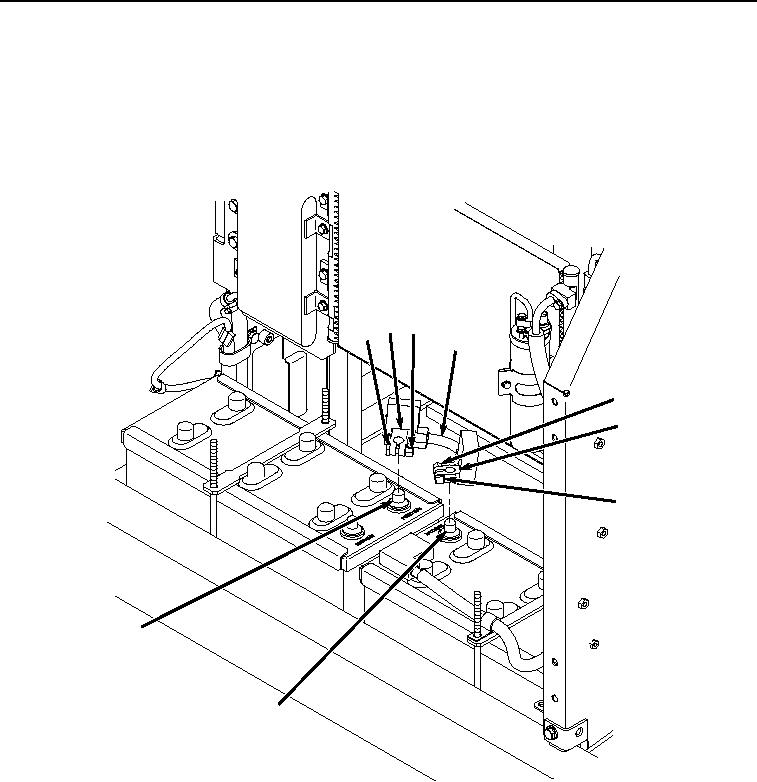

Figure 6. Jumper Battery Cable Installation.
7.
Install battery jumper cable (Figure 6, Item 24) to negative battery terminal (Figure 6, Item 23) with negative
battery terminal clamp (Figure 6, Item 22).
8.
Tighten nut (Figure 6, Item 20) to screw (Figure 6, Item 21) on negative battery terminal clamp (Figure 6, Item
22).
9.
Tighten nut (Figure 6, Item 16) to screw (Figure 6, Item 17) on positive battery terminal clamp (Figure 6, Item
18).
10.
Install negative battery cable (Figure 7, Item 14) to frame (Figure 7, Item 15) with washer (Figure 7, Item 13)
and screw (Figure 7, Item 12).
