SWITCH INSTALLATION
Install cab rear work lights switch (Figure 2, Item 1) to console cover (Figure 2, Item 2).
1
2
HYEX00887

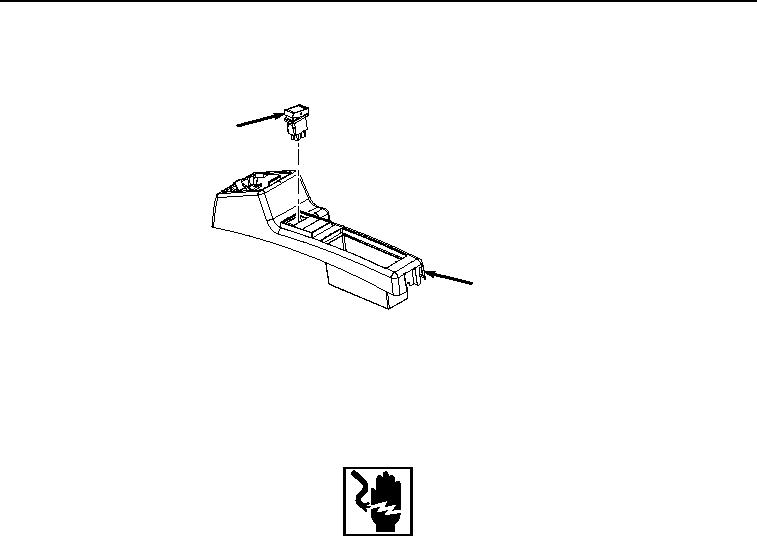

Figure 2.
Cab Rear Work Lights Switch Installation.
END OF TASK
WIRING HARNESS REMOVAL
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Tag and mark wires, connectors, and wiring harnesses prior to removal to ensure proper
installation.
Note position of each tie wrap and remove as required.
Note routing of wiring harness prior to removal to ensure proper installation.
1.
Disconnect switch wiring harness connector (Figure 3, Item 3) from cab wiring harness (Figure 3, Item 4).
