POWER DELIVERY WIRING HARNESS INSTALLATION - Continued
13
14
14
13
HYEX01525

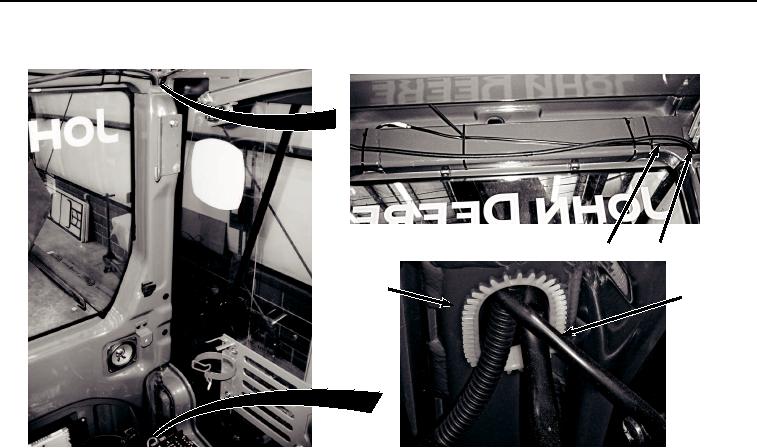

Figure 9. Delivery Control Wiring Harness Routing.
8.
Install power delivery wiring harness (Figure 9, Item 13) through upper hole of pillar (Figure 9, Item 14) and
pull out through lower hole of pillar (Figure 9, Item 14).
9.
Remove twine from wiring harness.
END OF TASK
CONTROL WIRING HARNESS INSTALLATION
1.
Install cab rear work lights relay (Figure 10, Item 9) to bracket (Figure 10, Item 10) with washer (Figure 10,
Item 8) and bolt (Figure 10, Item 7).
