POWER DELIVERY WIRING HARNESS INSTALLATION - Continued
12
15
13
HYEX01527

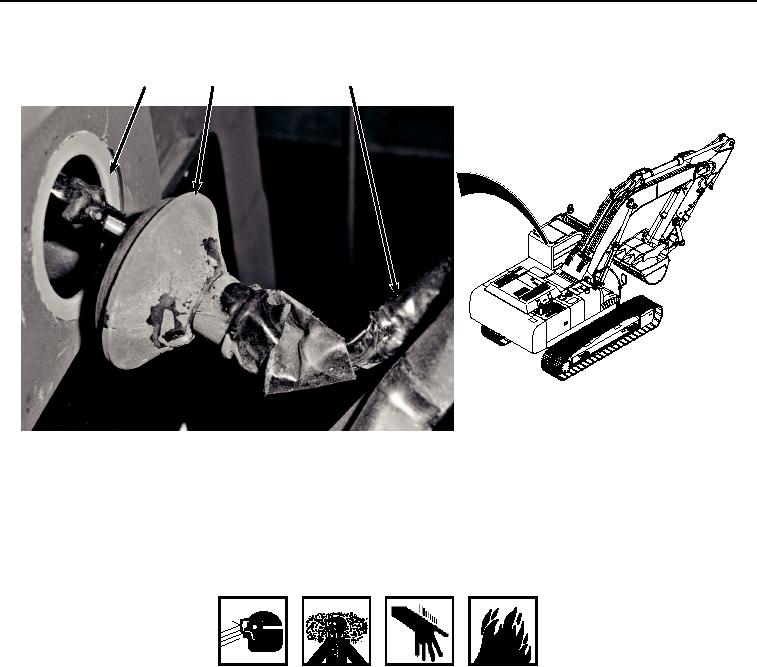

Figure 8. Power Delivery Wiring Harness Installation To Interior Of Cab.
4.
Tie twine from hole in cab to end of power delivery wiring harness (Figure 8, Item 13).
5.
Install power delivery wiring harness (Figure 8, Item 13) and grommet (Figure 8, Item 15) to cab (Figure 8,
Item 12).
WARNING
ADHESIVES AND SEALANTS
6.
Apply sealant around outer edge of grommet (Figure 8, Item 15).
7.
Route power delivery wiring harness (Figure 9, Item 13) along cab frame as shown in Figure 9.
