CONTROL WIRING HARNESS REMOVAL - Continued
3
4
HYEX01523

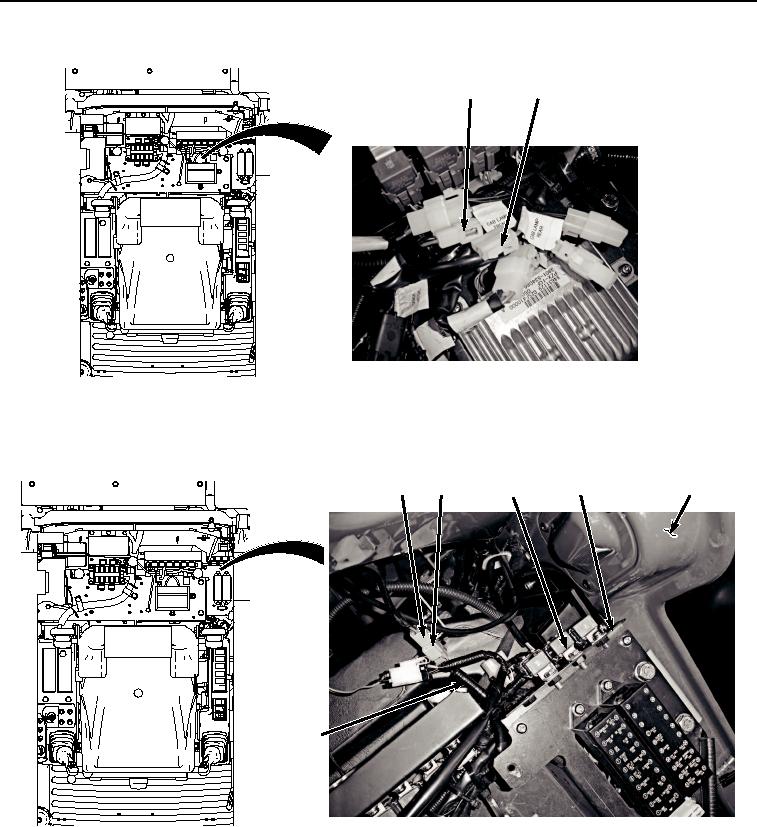

Figure 2. Disconnect Control Wiring Harness From Auxiliary Fuse Box Wiring Harness W13.
3.
Disconnect control wiring harness connector (Figure 3, Item 5) from power delivery wiring harness connector
(Figure 3, Item 6) at orange and green connector.
6
5
7, 8, 9
10
12
11
HYEX01524
Figure 3.
Disconnect Control Wiring Harness From Power Delivery Wiring Harness.
4.
Remove bolt (Figure 3, Item 7), washer (Figure 3, Item 8), and cab rear work lights relay (Figure 3, Item 9)
from bracket (Figure 3, Item 10).
5.
Remove control wiring harness (Figure 3, Item 11) from cab (Figure 3, Item 12).
END OF TASK
