HARNESS INSTALLATION - Continued
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Note position of each tie wrap and remove as required.
1.
Install cab rear work lights exterior wiring harness (Figure 6, Item 1) to cab (Figure 6, Item 7) with two clamps
(Figure 6, Item 6), and bolts (Figure 6, Item 5).
5, 6
7
1
HYEX01671

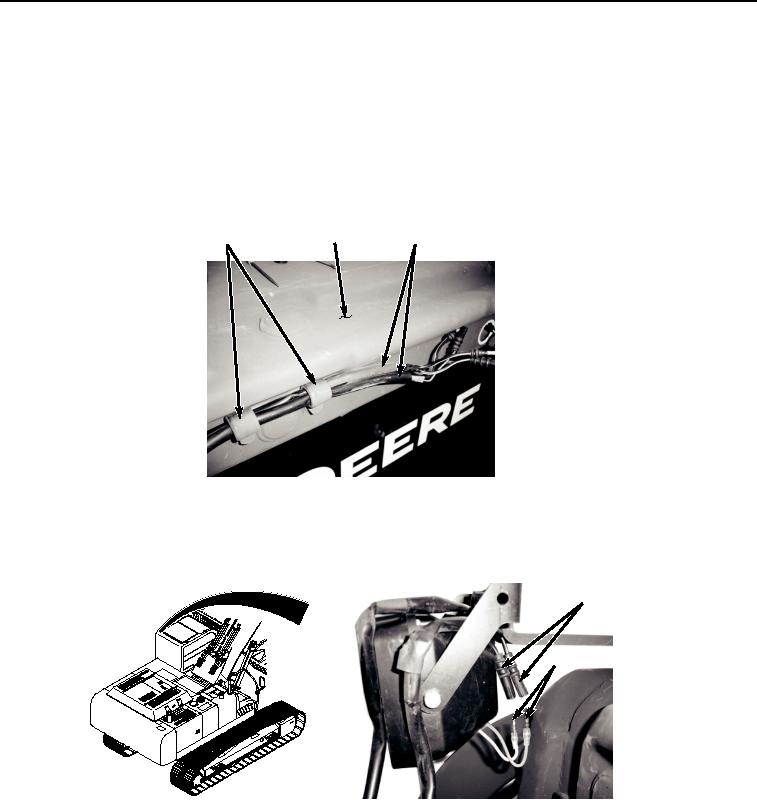

Figure 6. Harness, Clamps, and Hardware Installation.
2.
Connect left cab rear work light connectors (Figure 7, Item 4) to cab rear work lights exterior wiring harness
(Figure 7, Item 1).
1
4
HYEX01670
Figure 7. Connect Harness To Left Cab Rear Work Light.
3.
Connect power delivery wiring harness (Figure 8, Item 3) and right cab rear work light connectors (Figure 8,
Item 2) to cab rear work lights exterior wiring harness (Figure 8, Item 1).
