HARNESS REMOVAL - Continued
5, 6
7
1
HYEX01671

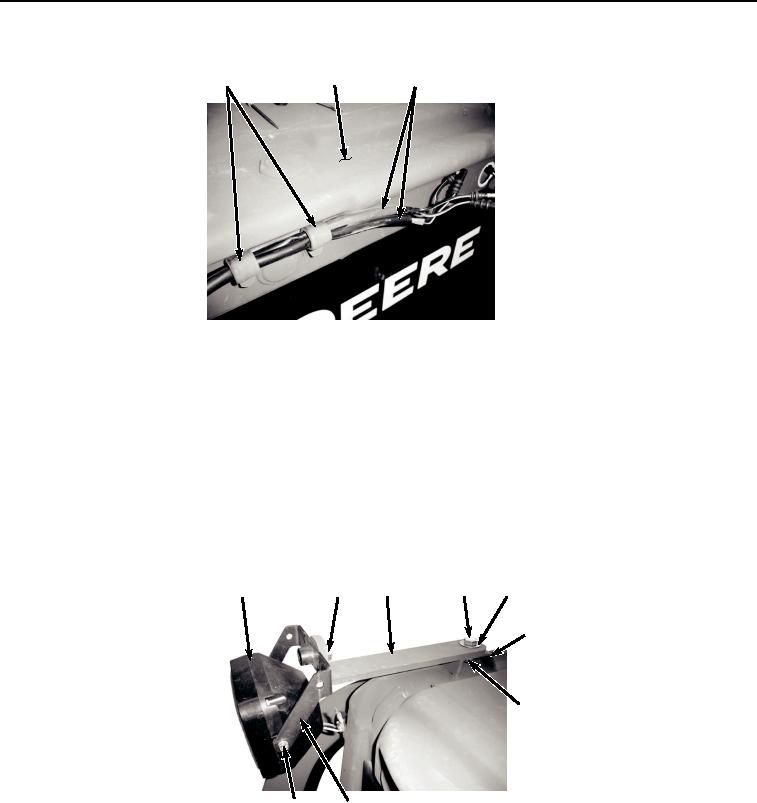

Figure 3. Harness, Clamps, and Hardware Removal.
END OF TASK
LIGHT REMOVAL
NOTE
Left and right cab rear work lights are removed in the same way. Left cab rear work light
shown.
1.
Remove two screws (Figure 4, Item 8), and light (Figure 4, Item 9) from mount (Figure 4, Item 10). Discard
screws.
9
11, 12
13
14
15
7
16
8
10
HYEX01672
Figure 4. Left and Right Cab Rear Work Lights Removal.
2.
Remove bolt (Figure 4, Item 11), washer (Figure 4, Item 12), and mount (Figure 4, Item 10) from bracket (Figure
4, Item 13).
3.
Remove bolt (Figure 4, Item 14), washer (Figure 4, Item 15), locknut (Figure 4, Item 16), and bracket (Figure
4, Item 13) from cab (Figure 4, Item 7). Discard locknut.
END OF TASK
