POWER DELIVERY WIRING HARNESS INSTALLATION - Continued
11
10
11
10
HYEX03155

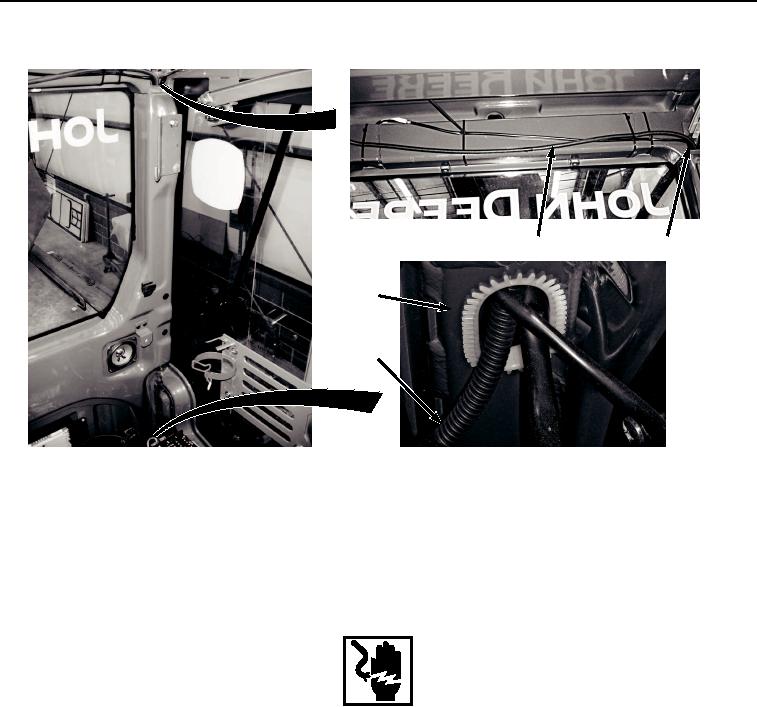

Figure 6. Install Power Delivery Wiring Harness In Cab Pillar.
6.
Remove twine from wiring harness (Figure 6, Item 10).
END OF TASK
CONTROL WIRING HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.
Position control wiring harness (Figure 7, Item 8) in cab (Figure 7, Item 9).
