TM 5-3805-294-23-4
0499
POWER DELIVERY WIRING HARNESS REMOVAL - Continued
13
12
10
9
14
HYEX01201

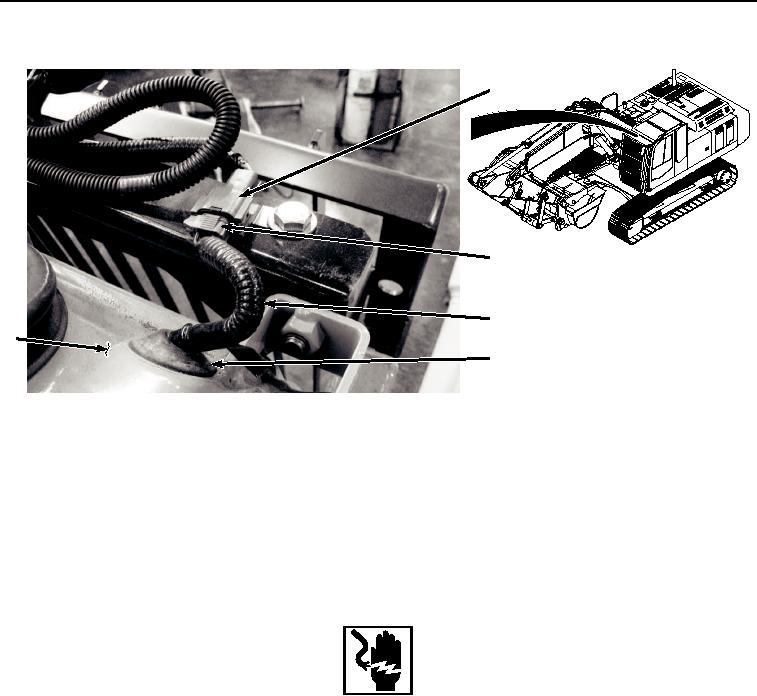

Figure 4. Disconnect Exterior Wiring Harness From Power Delivery Wiring Harness.
4.
Pull power delivery wiring harness (Figure 4, Item 10) and grommet (Figure 4, Item 14) from cab (Figure 4,
Item 9).
5.
Remove twine from delivery wiring harness (Figure 4, Item 10).
END OF TASK
POWER DELIVERY WIRING HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
1.
Connect power delivery wiring harness connector (Figure 5, Item 12) to cab front work lights connector (Figure
5, Item 13).
