TM 5-3805-294-23-4
0498
HARNESS INSTALLATION - Continued
2
2
8
7
HYEX01813

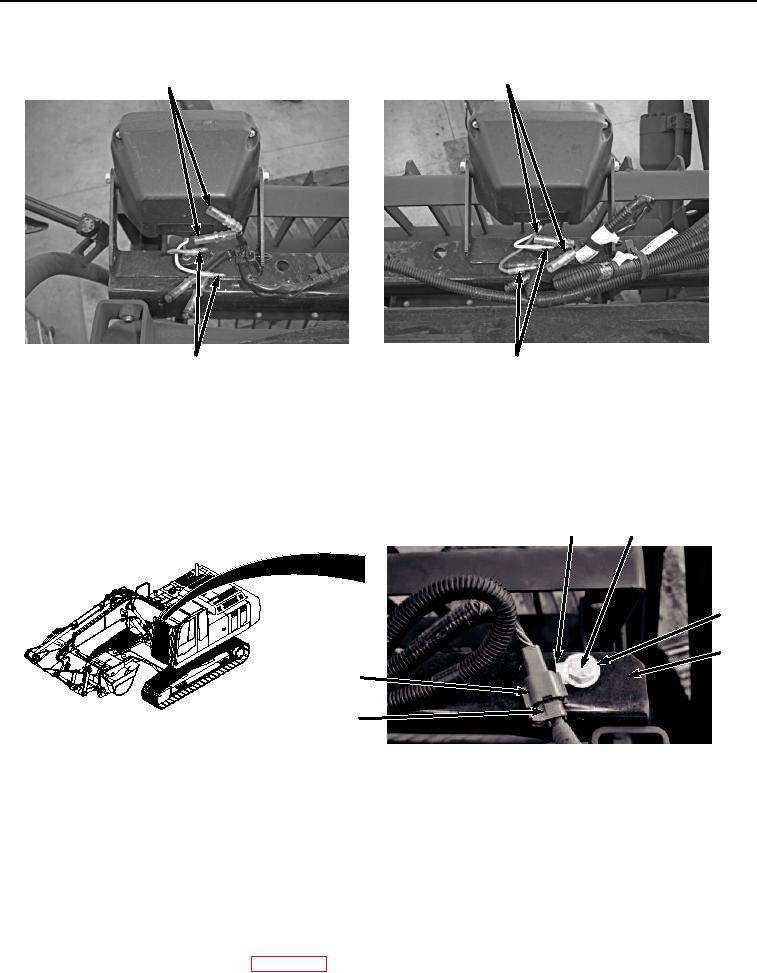

Figure 9. Connect Harness To Left and Right Lights.
3.
Connect two left connectors of harness (Figure 9, Item 2) to left front cab work light wire connectors E5 (Figure
9, Item 7).
4.
Install harness mount (Figure 10, Item 3) to mounting bracket (Figure 10, Item 6) with washer (Figure 10, Item
5) and screw (Figure 10, Item 4).
3
4
5
6
2
1
HYEX01812
Figure 10. Connect Exterior Harness To Interior Harness.
5.
Install connector (Figure 10, Item 2) to harness mount (Figure 10, Item 3).
6.
Connect front cab work lights interior wiring harness connector (Figure 10, Item 2) to front cab work lights
exterior wiring harness connector (Figure 10, Item 1).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Connect negative battery cable. (WP 0521)
