TM 5-3805-294-23-4
0499
CONTROL WIRING HARNESS REMOVAL - Continued
1
2
HYEX03153

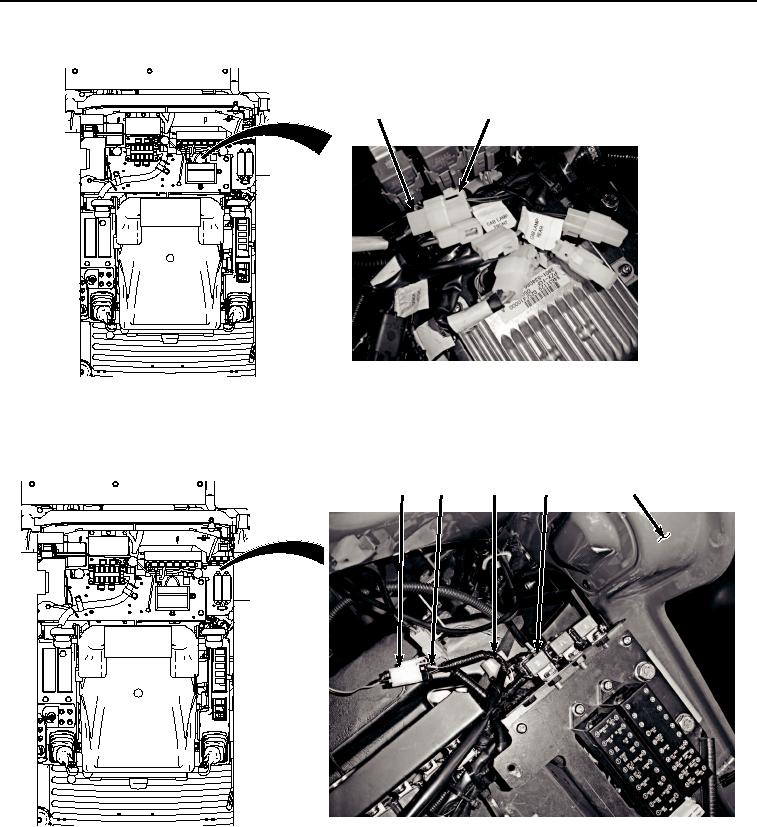

Figure 1. Disconnect Control Wiring Harness From Auxiliary Fuse Box Wiring Harness W13.
2.
Disconnect control wiring harness connector (Figure 2, Item 3) from power delivery wiring harness connector
(Figure 2, Item 4).
4
3
8
5, 6, 7
9
HYEX03154
Figure 2.
Disconnect Control Wiring Harness From Power Delivery Wiring Harness.
3.
Remove relay (Figure 2, Item 5) from bracket (Figure 2, Item 6).
4.
Remove control wiring harness connector (Figure 2, Item 7) from relay (Figure 2, Item 5).
5.
Remove control wiring harness (Figure 2, Item 8) from cab (Figure 2, Item 9).
END OF TASK
