TM 5-3805-294-23-4
0500
LIGHT INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Left and right cab rear work lights are installed in the same way. Left cab rear work light
shown.
Install tie wraps as required.
1.
Install bracket (Figure 5, Item 13) to cab (Figure 5, Item 7) with locknut (Figure 5, Item 16), washer (Figure 5,
Item 15), and bolt (Figure 5, Item 14).
9
11, 12
13
14
15
7
16
8
10
HYEX01672

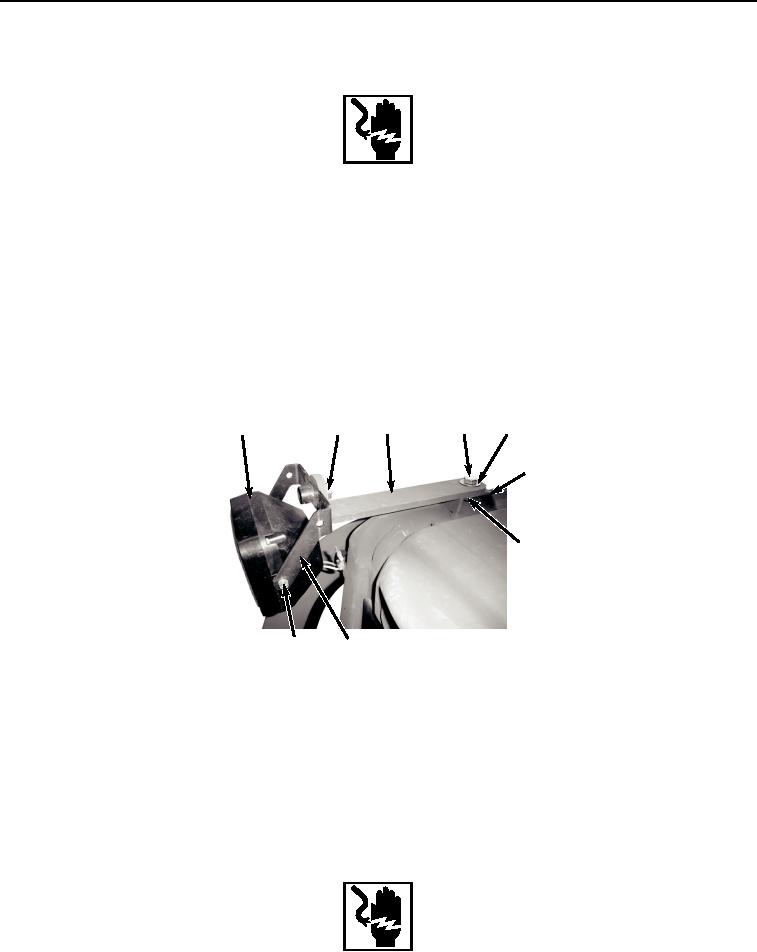

Figure 5.
Left and Right Cab Rear Work Lights Installation.
2.
Install mount (Figure 5, Item 10) to bracket (Figure 5, Item 13) with washer (Figure 5, Item 12) and bolt (Figure
5, Item 11).
3.
Install light (Figure 5, Item 9) and attach to mount (Figure 5, Item 10) with two screws (Figure 5, Item 8).
END OF TASK
HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
