POWER DELIVERY WIRING HARNESS REMOVAL
NOTE
Note routing of power delivery wiring harness during removal to ensure proper installation.
1.
Tie twine to end of power delivery wiring harness (Figure 4, Item 13) to aid in the routing of cable during
installation.
13
14
14
13
HYEX01525

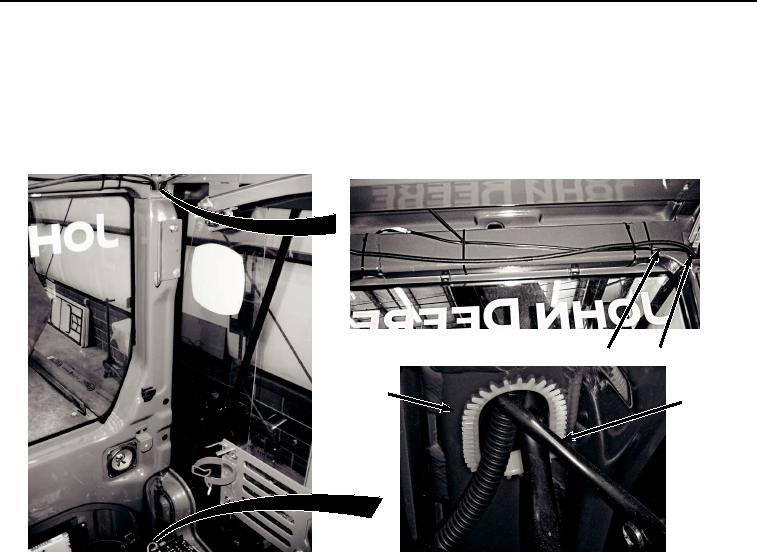

Figure 4. Remove Power Delivery Wiring Harness From Cab Pillar.
2.
Pull power delivery wiring harness (Figure 4, Item 13) up through lower hole in pillar (Figure 4, Item 14) and
out top of pillar (Figure 4, Item 14).
3.
Pull power delivery wiring harness (Figure 5, Item 13) and grommet (Figure 5, Item 15) from cab (Figure 5,
Item 12).
