TM 5-3805-294-23-4
0501
POWER DELIVERY WIRING HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
Route power delivery wiring harness as noted during removal.
1.
Connect cab rear work lights exterior wiring harness connector (Figure 7, Item 18) to power delivery wiring
harness connector (Figure 7, Item 19).
16
18
17
19
HYEX01763

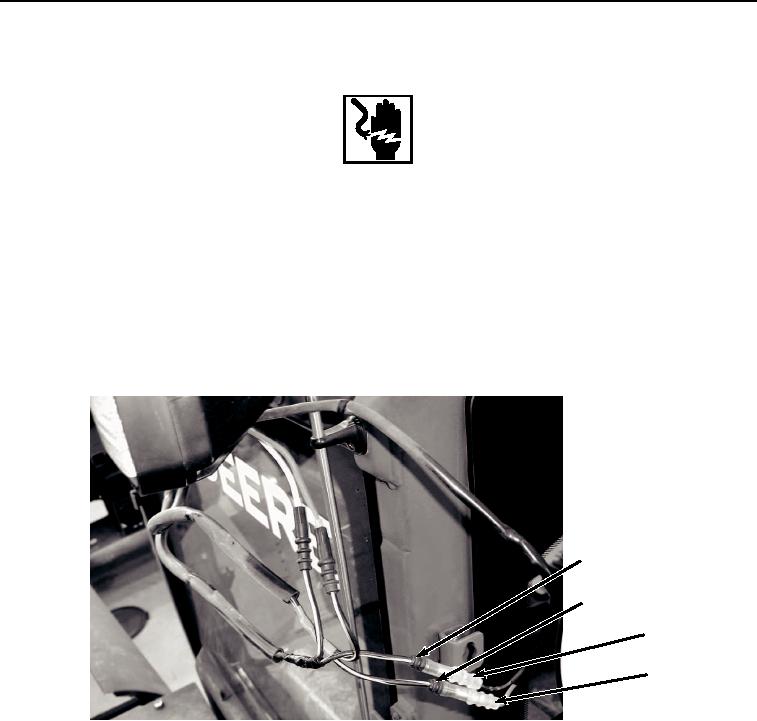

Figure 7. Connect Exterior Wiring Harness To Power Delivery Wiring Harness.
2.
Connect cab rear work lights exterior wiring harness connector (Figure 7, Item 16) from power delivery wiring
harness connector (Figure 7, Item 17).
3.
Remove any old sealant from around hole in cab (Figure 8, Item 12).
