INSTALLATION - Continued
11
4
HYEX02158

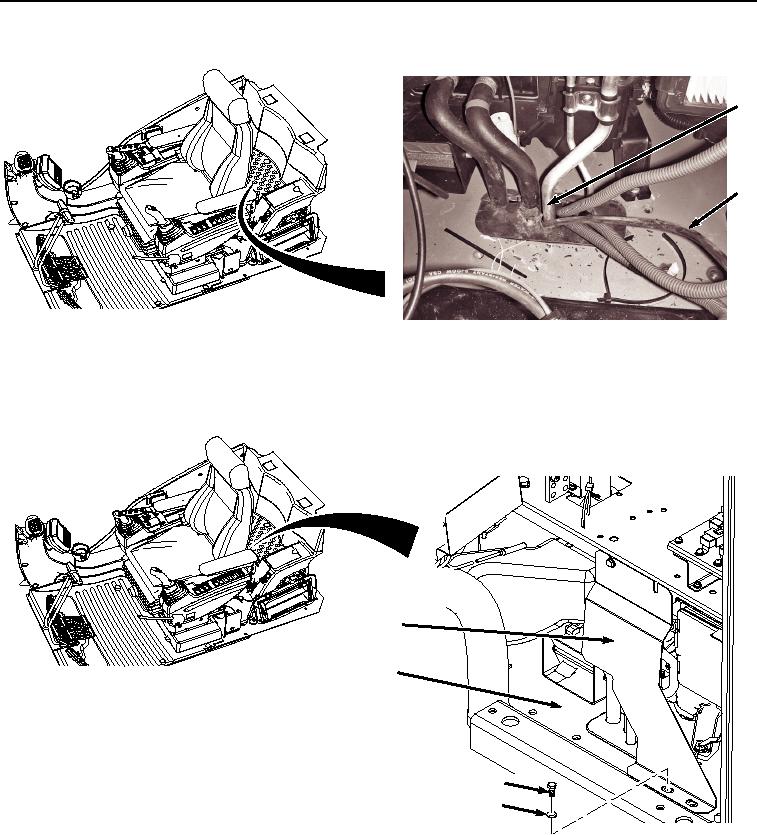

Figure 9. Wiring Harness To Cab Installation.
4.
Install bracket (Figure 10, Item 9) to machine (Figure 10, Item 10) with four washers (Figure 10, Item 8), and
screws (Figure 10, Item 7).
9
10
7
8
HYEX03619
Figure 10. Bracket Installation.
5.
Pass wiring harness (Figure 11, Item 4) through access in frame (Figure 11, Item 6).
